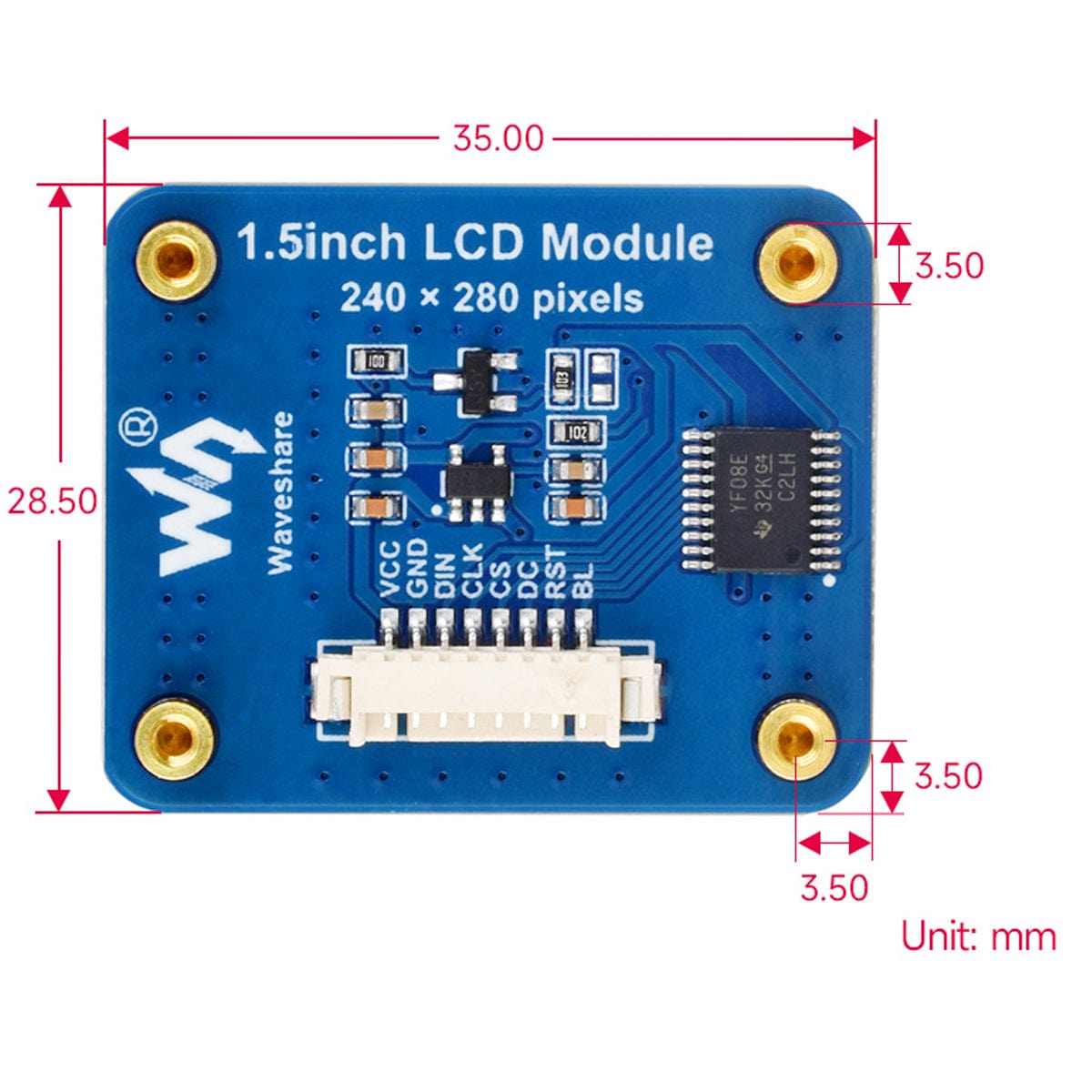

1.5" Rounded IPS LCD Display Module (240 x 280)

This display module features a 1.5" IPS panel with rounded corners, that provides good viewing angles and vivid colour reproduction. It has a resolution of 240 x 280 pixels, providing clear and sharp images in a smaller size. It supports 262K colours, providing decent colour rendering for most projects.

The SPI interface provides quick and easy integration into various projects, and the NV3030B driver takes care of the low-level functions of the display, freeing up the main controller to focus on the core functionalities. It supports controller boards from Raspberry Pi, Arduino, STM32, and many more!

Note: Raspberry Pi is NOT included

Features

• 240 x 280 resolution, 262K RGB colours, clear and colourful displaying effect
• SPI interface, minimises required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series
• Comes with development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series)

Connection Example - Raspberry Pi

Specifications

Resources

• Product Wiki
• Schematic

Pinout

Package Contents

• 1x 1.5" LCD Module
• 1x GH1.25 8-Pin cable
