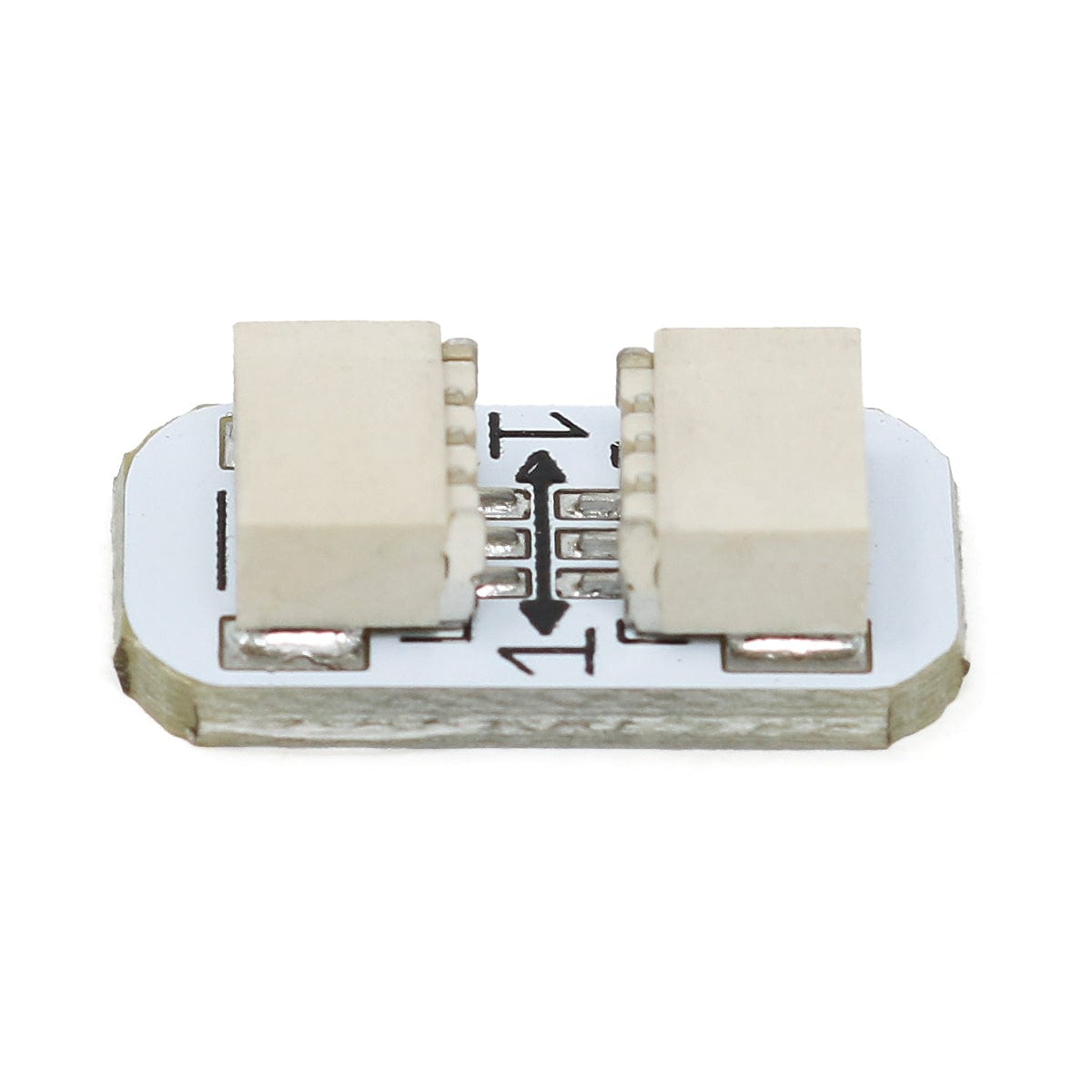

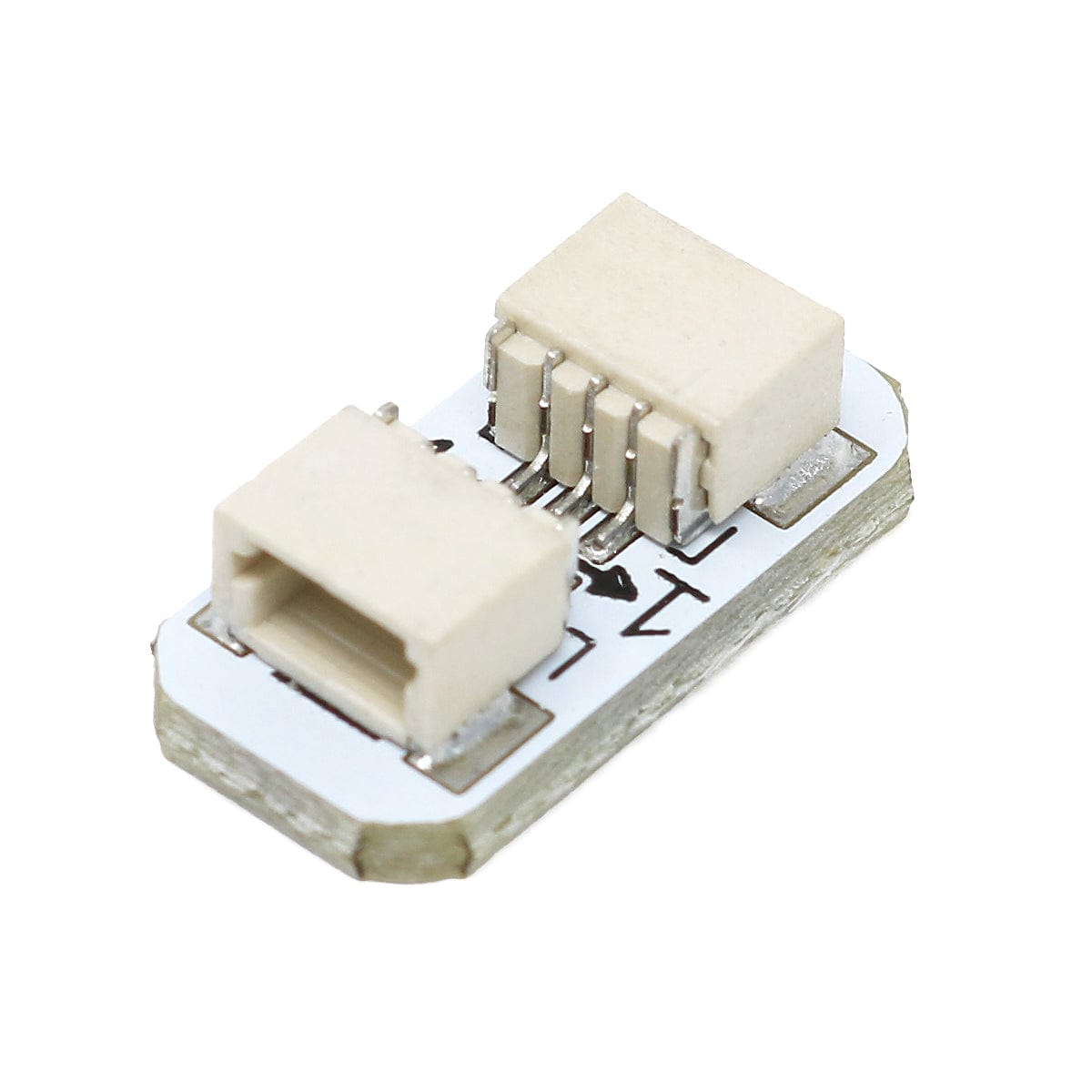

3-pin JST-SH Cable Joiner for Raspberry Pi UART/SWD

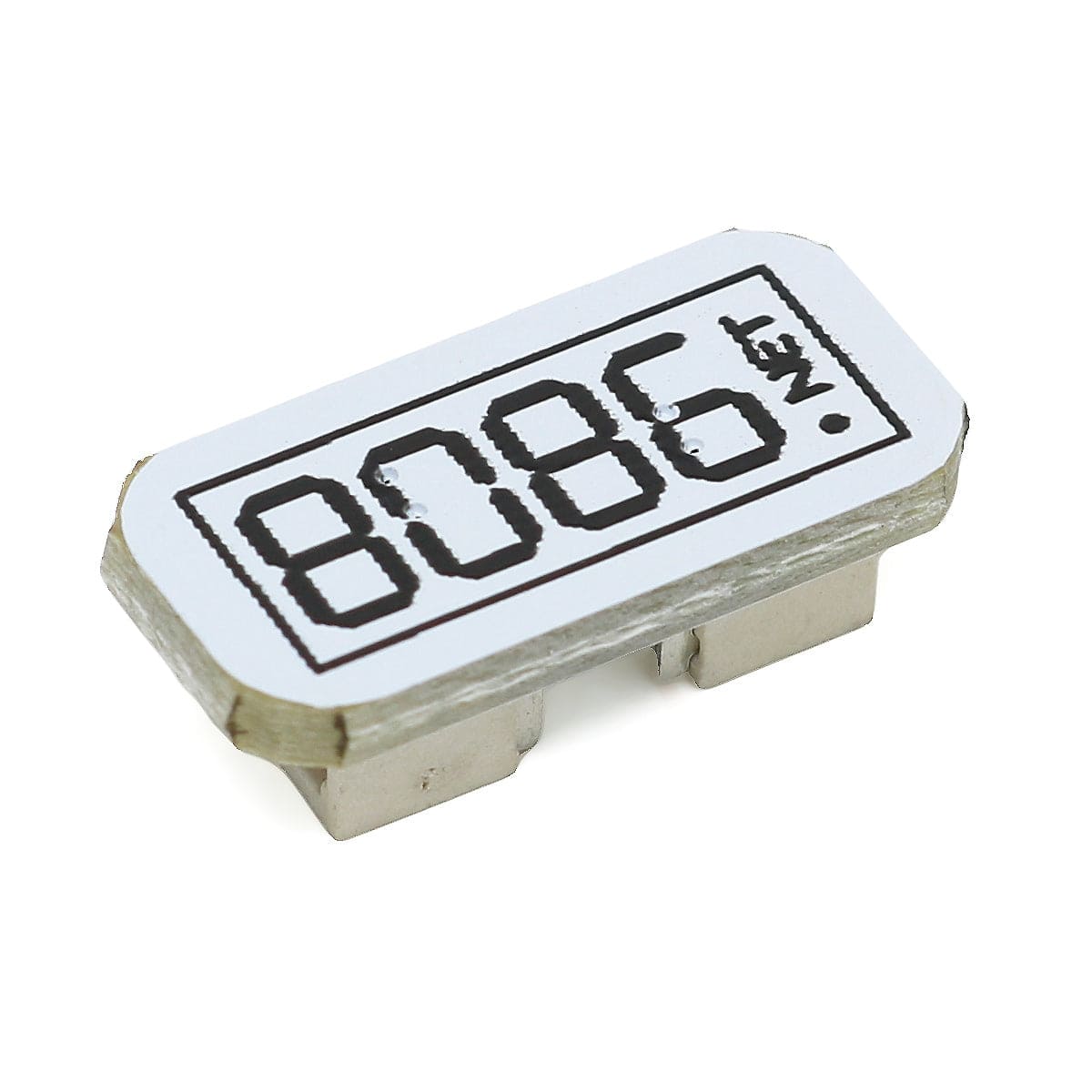

This handy little cable joiner from our friends over at 8086 is designed to extend 3-pin JST-SH cables with pin 1 wired to pin 1 as used with the Raspberry Pi 5 UART / Raspberry Pi Debug Probe UART and SWD (debug/program).

You can also use the joiners to convert between cable pinouts:

• Two cables wired "1-3" used with this 1-1 joiner is the equivalent of a cable wired "1-1".
• One cable wired "1-1" and one cable wired "1-3" used with this 1-1 joiner is equivalent to a cable wired "1-3".

UART/SWD cables are not included.

Pinout

Package Contents

• 1x 3-pin joiner (white) for Raspberry Pi UART/Debug probe/SWD

Cables not included
