Raspberry Pi
Raspberry Pi Compute Module 5 Passive Cooler
Raspberry Pi Compute Module 5 Passive Cooler
Regular price
$4.80 USD
Regular price
Sale price
$4.80 USD
Unit price
/
per
Couldn't load pickup availability

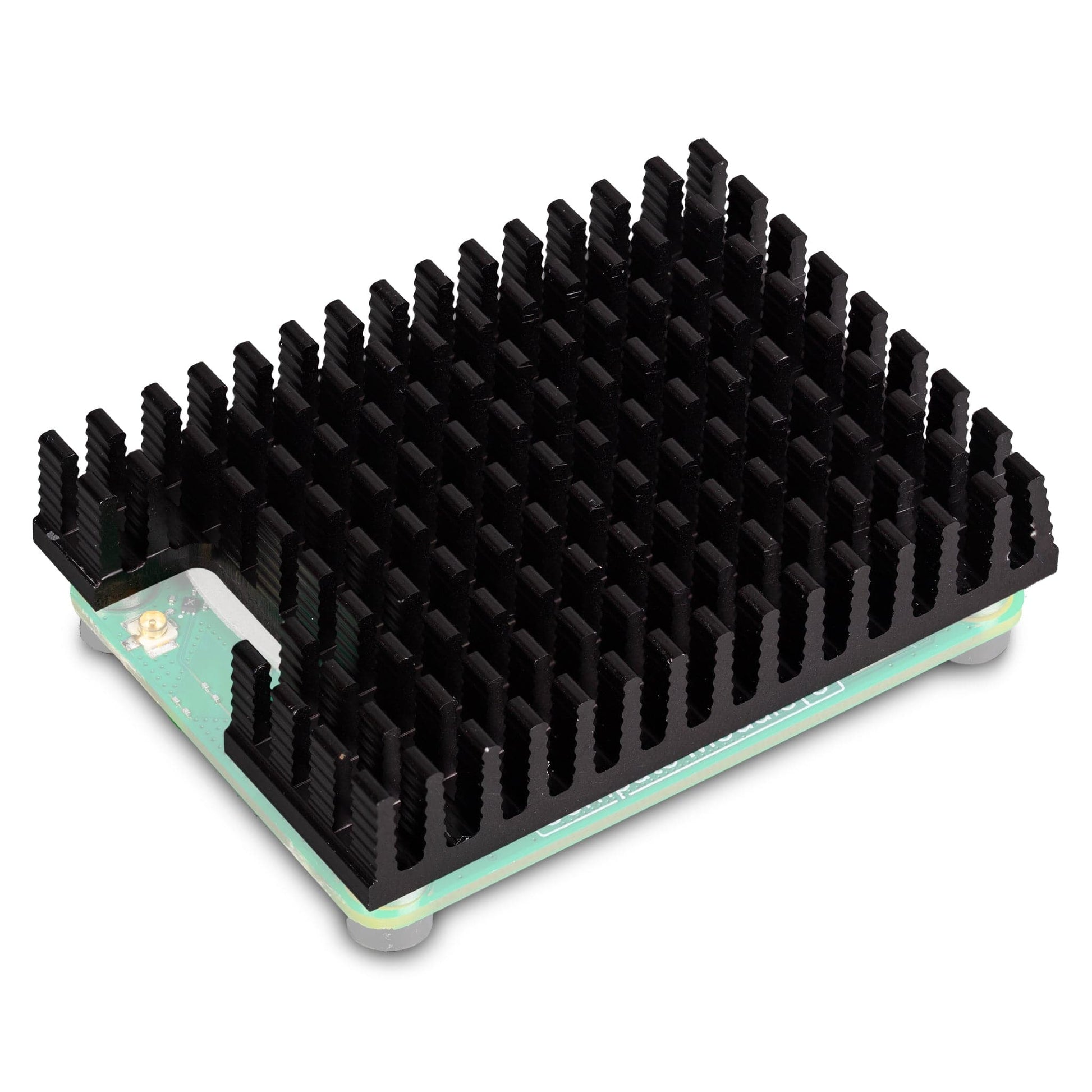

The Raspberry Pi Cooler for Raspberry Pi Compute Module 5 is a passive heatsink that helps Compute Module 5 dissipate heat, improving CPU performance, and protects it from mechanical damage.
Thermally conductive silicone on the underside of the Cooler effectively couples it to the surface of the Compute Module 5 CPU, wireless module, and power management chip for optimal heat dissipation.

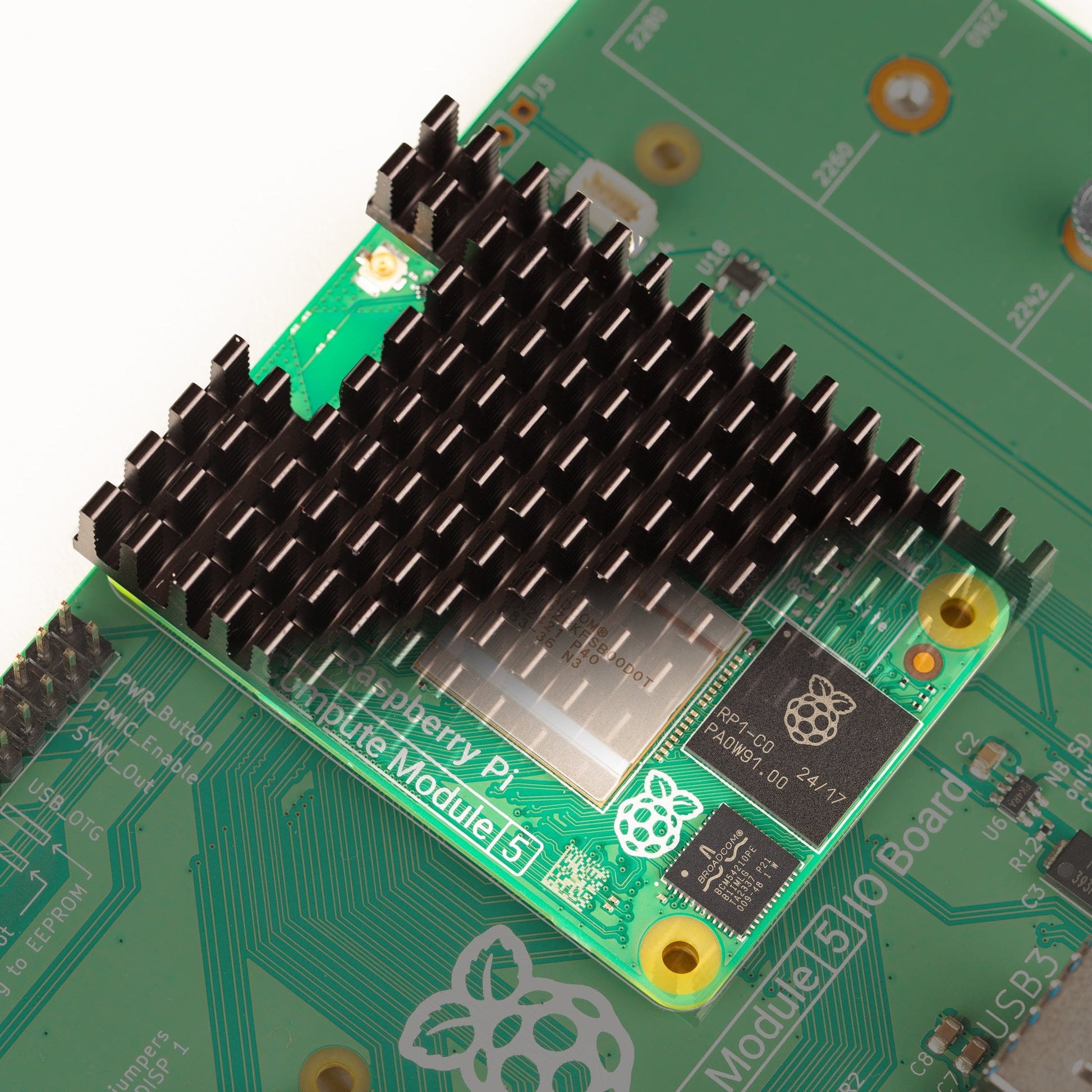

The Passive Cooler can be used when the CM5 is installed on a Raspberry Pi Compute Module 5 IO Board, and also fits inside the Raspberry Pi Compute Module 5 IO Case (the IO case fan needs to be removed to fit and use the cooler).
CM5 and IO board not included
Specifications

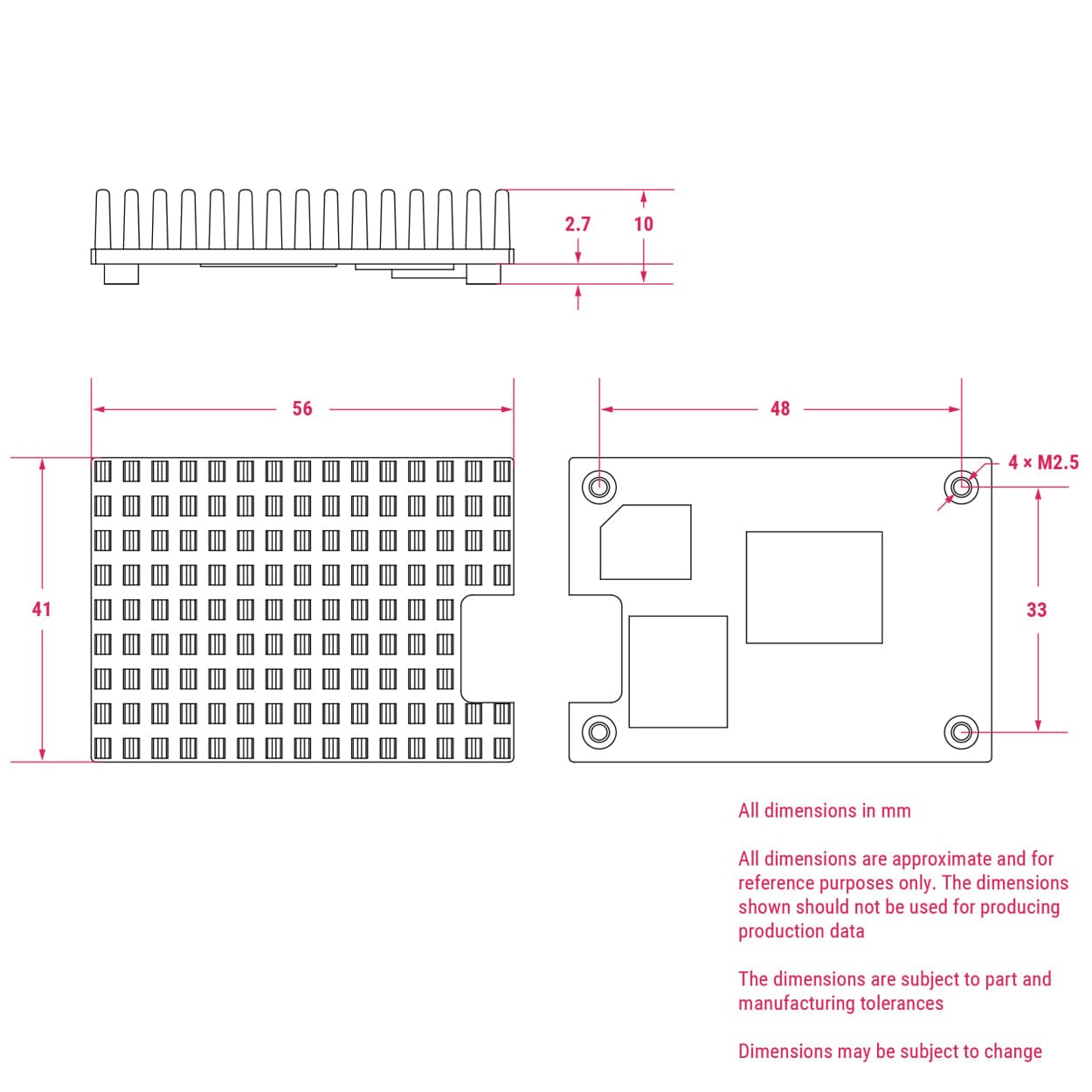

| Form factor | 56 mm × 41 mm × 12.7 mm |
| Product material | Aluminium profile, thermally conductive silicone |
| Production lifetime | The Raspberry Pi Cooler for Raspberry Pi Compute Module 5 will remain in production until at least January 2036 |
| Compliance | For a full list of local and regional product approvals, please visit pip.raspberrypi.com |
Resources
- Raspberry Pi Compute Module 5 Passive Cooler announcement
-
Raspberry Pi Compute Module 5 Passive Cooler Product Brief
-

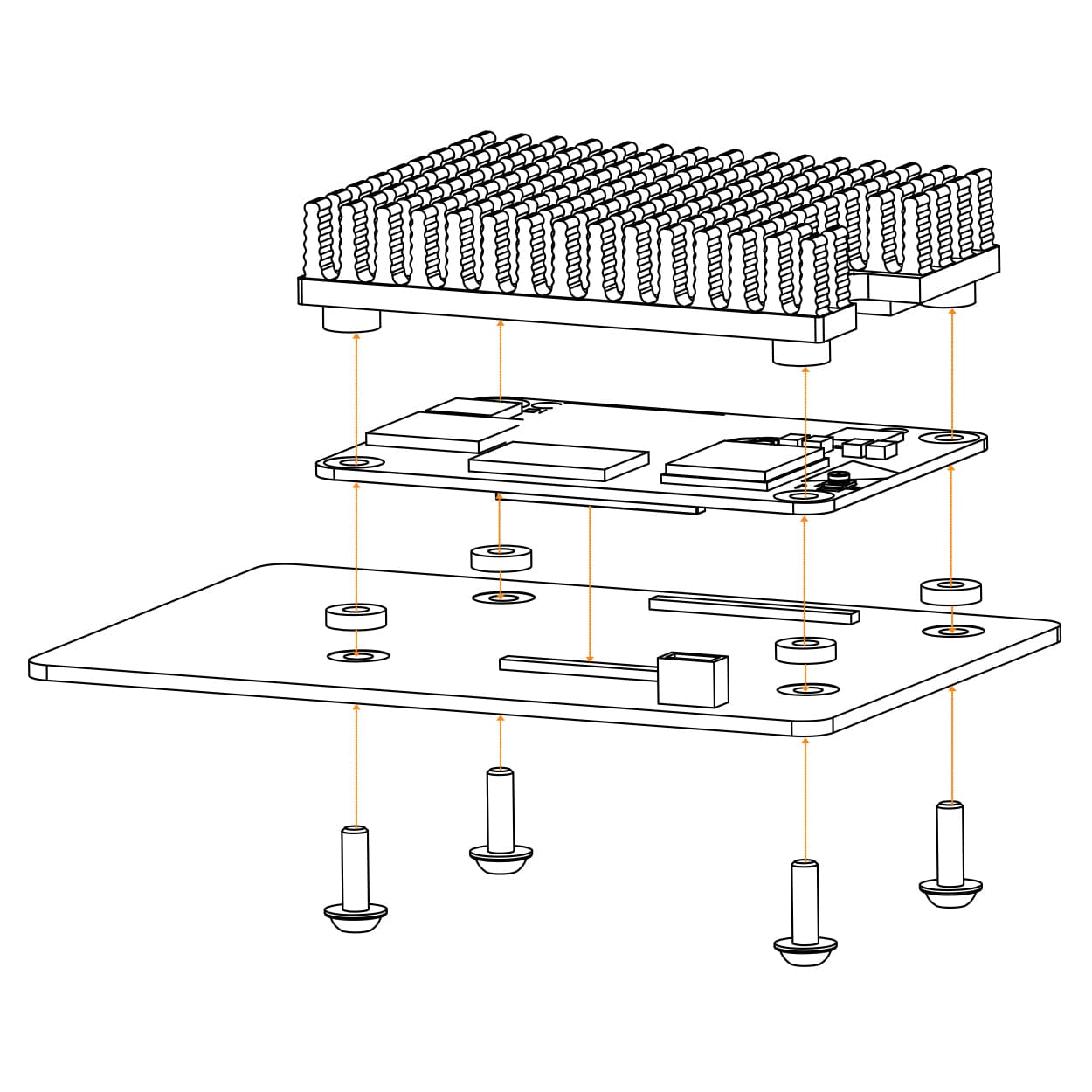

Includes assembly instructions
-
Includes assembly instructions
- Raspberry Pi Compute Module 5 Passive Cooler Documentation
- Product number: Raspberry Pi SC1752
- EAN: 5056561805283
Package Contents
- 1x Raspberry Pi Compute Module 5 Passive Cooler
- Thermal silicone pre-fitted to the underside
- 4x M2.5 Nylon washers
- 4x M2.5 Screws
CM5 and IO board not included
