Watch Development Kit (Excluding Core) V1.1
Watch Development Kit (Excluding Core) V1.1
Couldn't load pickup availability
The Watch v1.1 Dev Kit (excluding Core) is a watch kit adapted to the M5Core host which in addition to its powerful development hardware, and appearance, can be used as a smart wearable device.

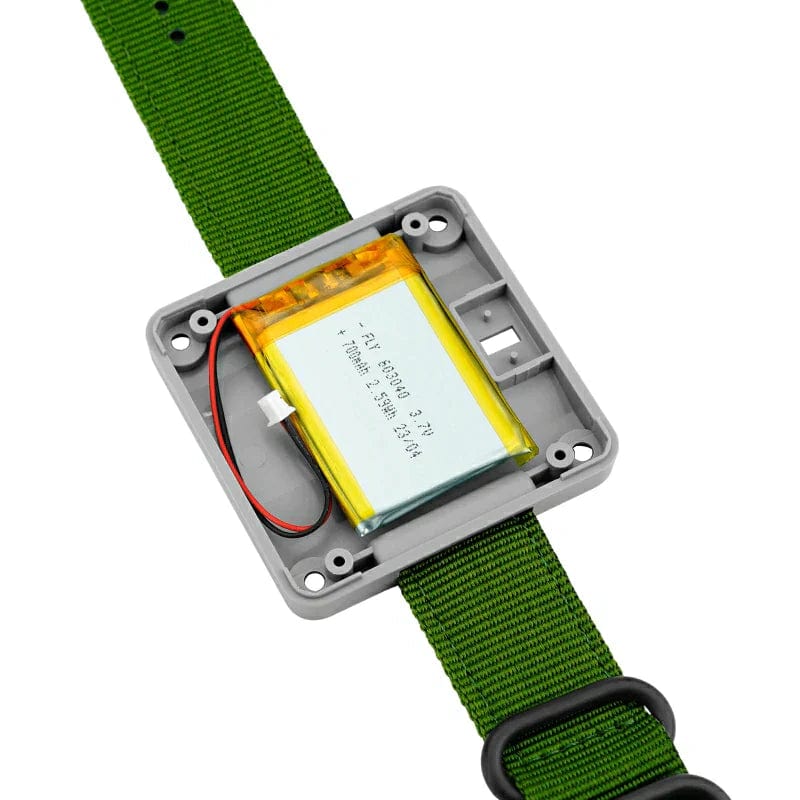

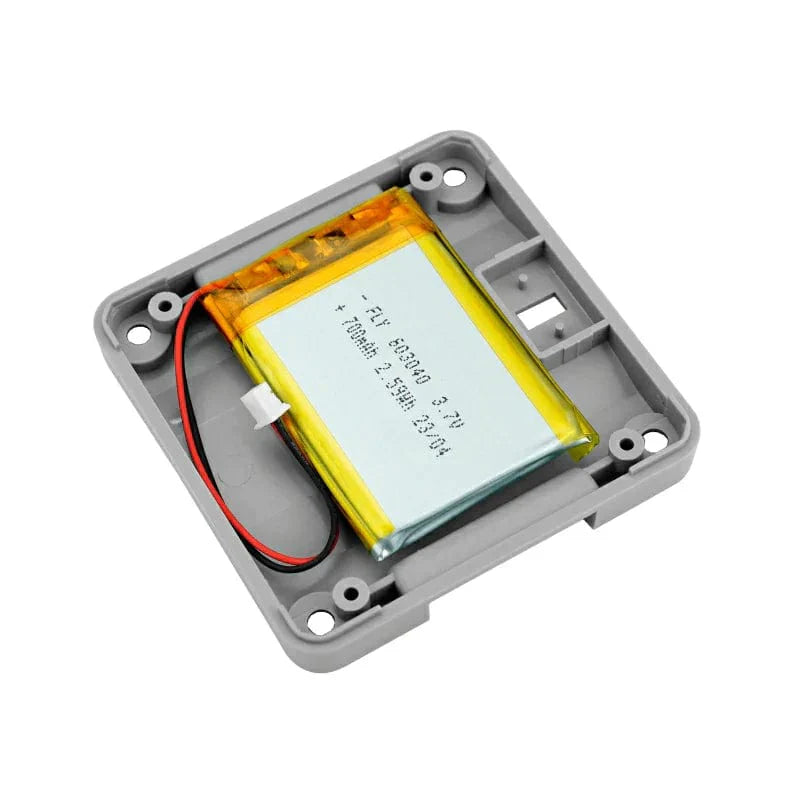

The kit is designed for the M5Core series, and in addition to the strap, it is also equipped with a 700mAh lithium battery, allowing users to use the device while having enough battery life.
Note: This product is compatible with the M5Core2 and M5CoreS3. If combined with Core2, it can be locked with two M3*18 cup head screws.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?
Features
- Compatible with Basic core/Core/CoreS32
- 700mAh lithium battery
Specifications
| Resources | Parameters |
| Strap size and weight | 260mm x 22mm / 18g |
| Base dimensions and weight | 54.3mm x 54.3mm x 7mm / 25g |
| Product Size | 54.3 x 54.3 x 7mm |
| Package Size | 125 x 67 x 23mm |
| Product Weight | 57g |
| Package Weight | 108g |
Resources

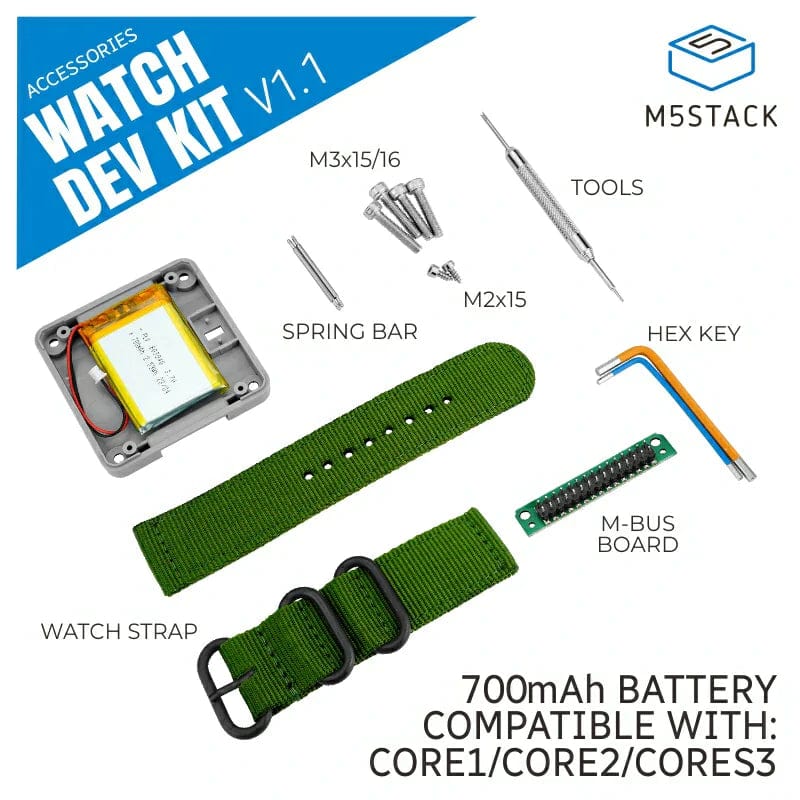

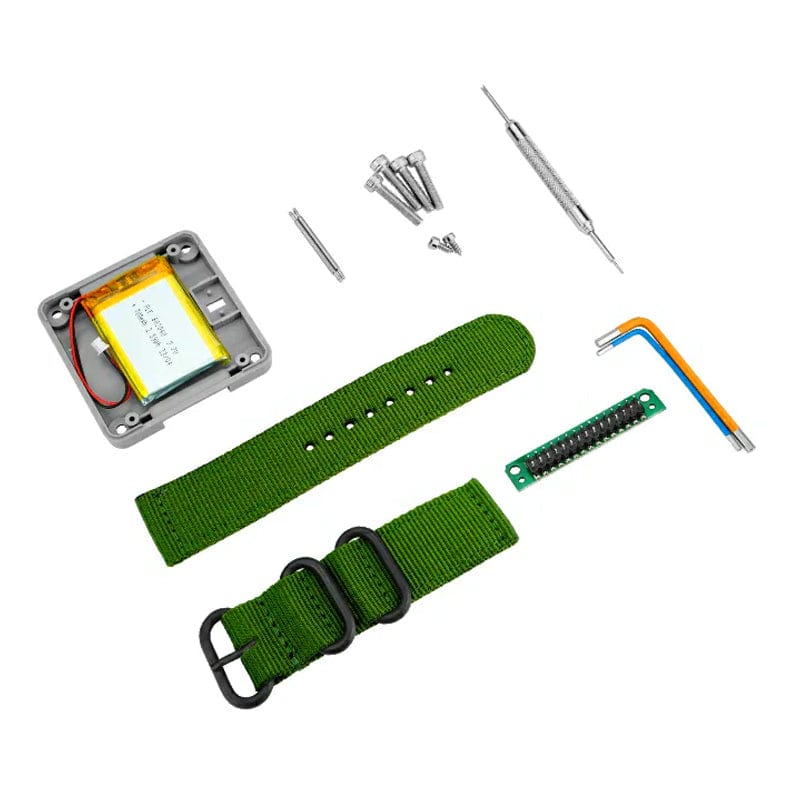

Package Contents
- 1x Strap base

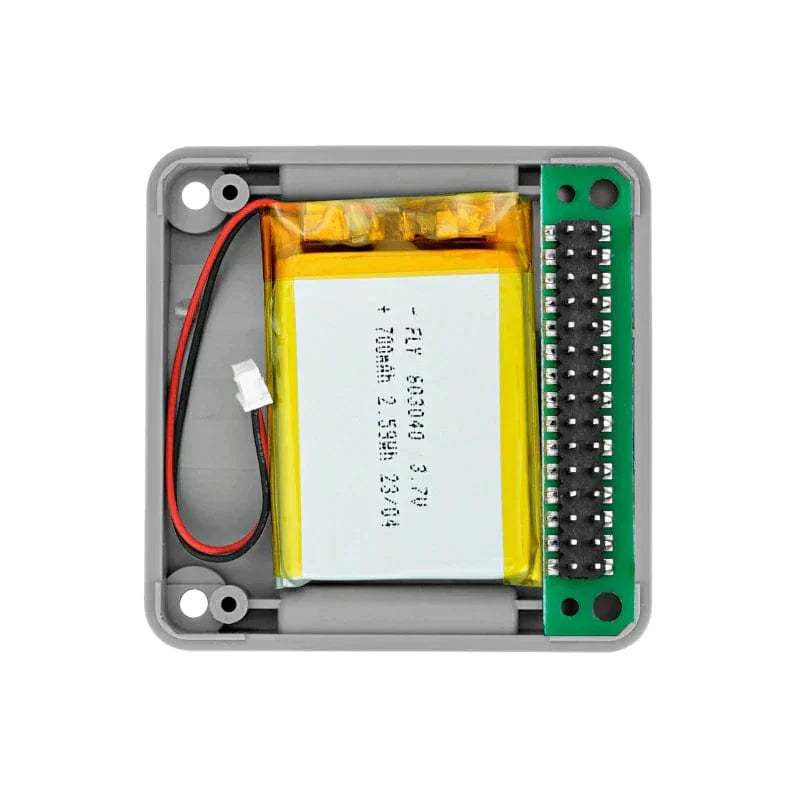

- 1x M-BUS board
- 1x 700mAh battery
- 2x Telescopic card pin
- 2x M3x15 screws
- 2x M3x16 screws
- 2x M2x15 screws
- 2x Hex Key
- 1x Disassemble screwdriver
