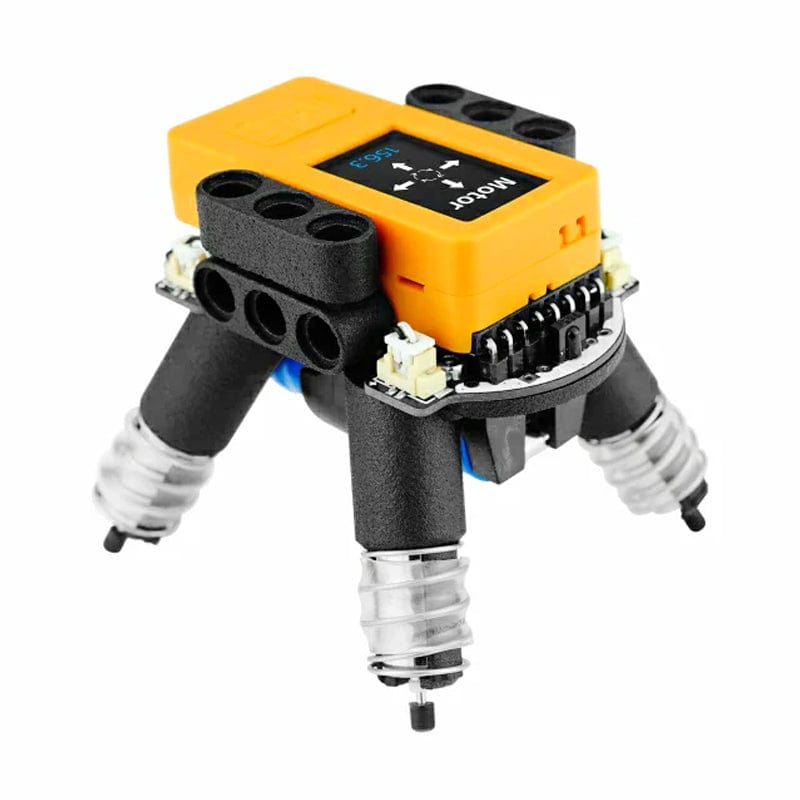

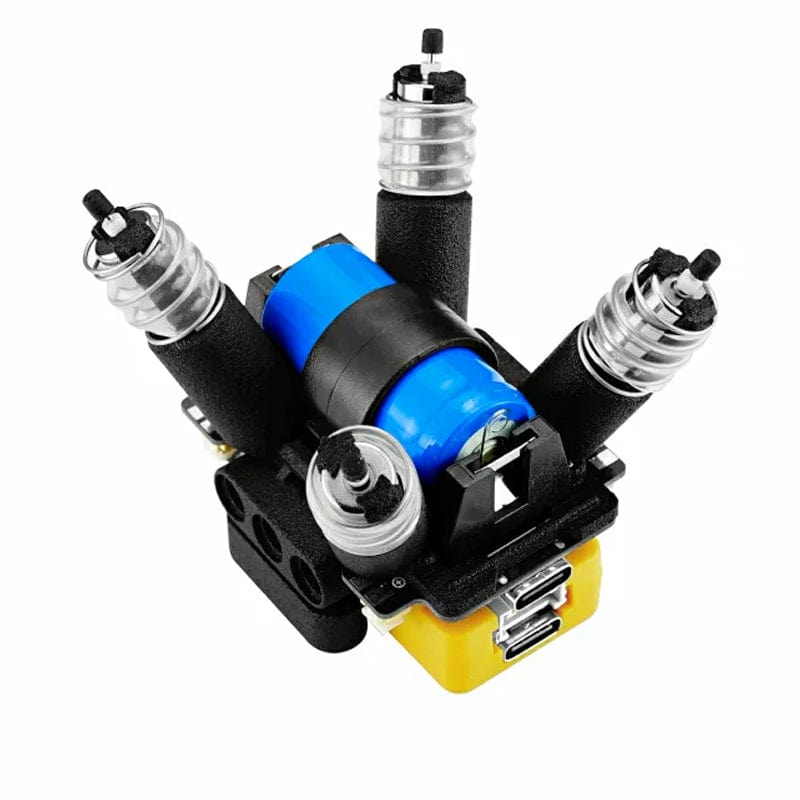

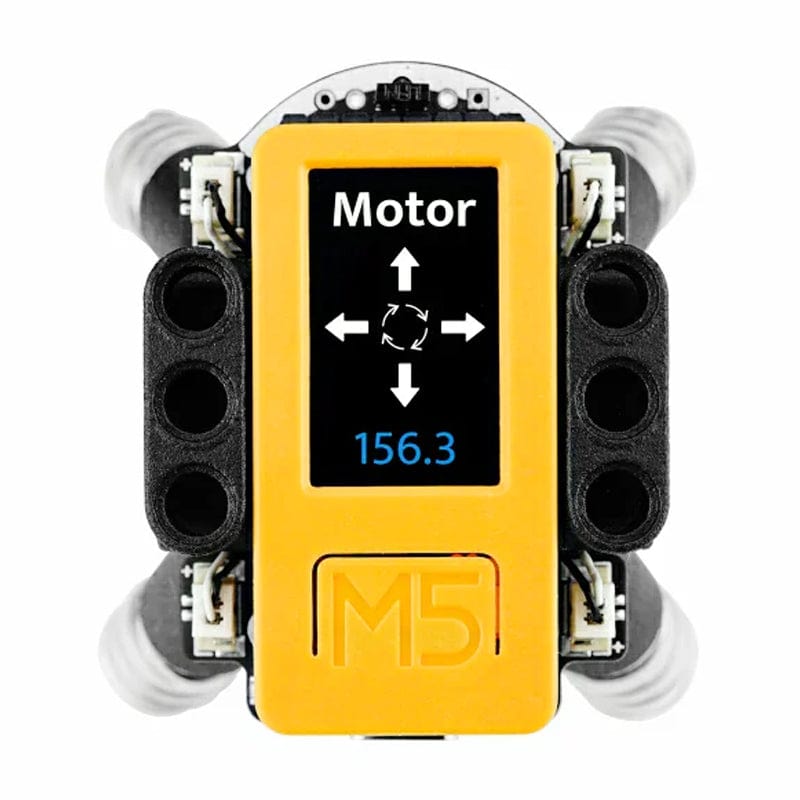

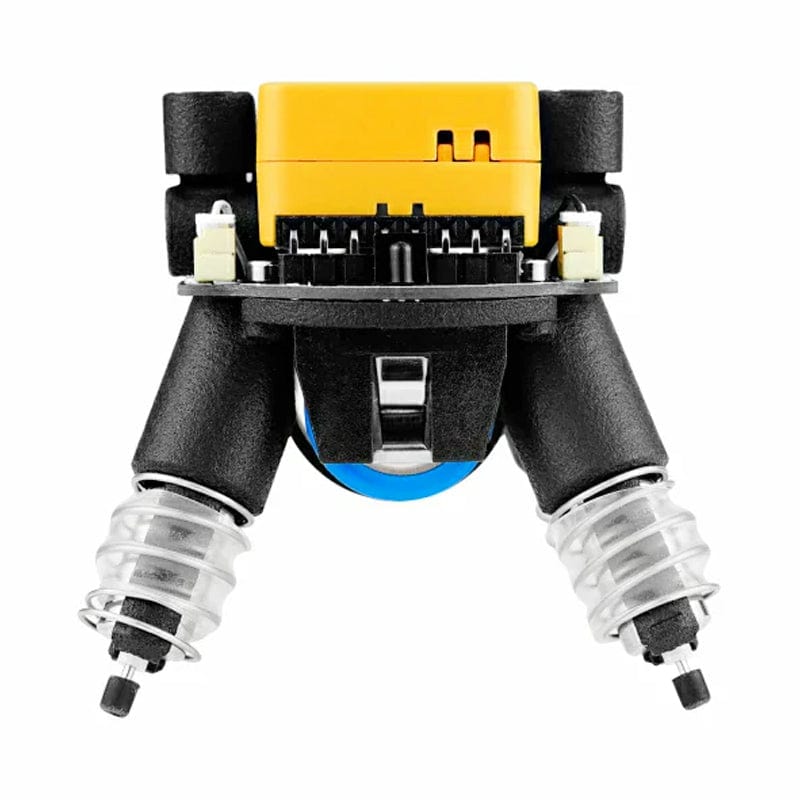

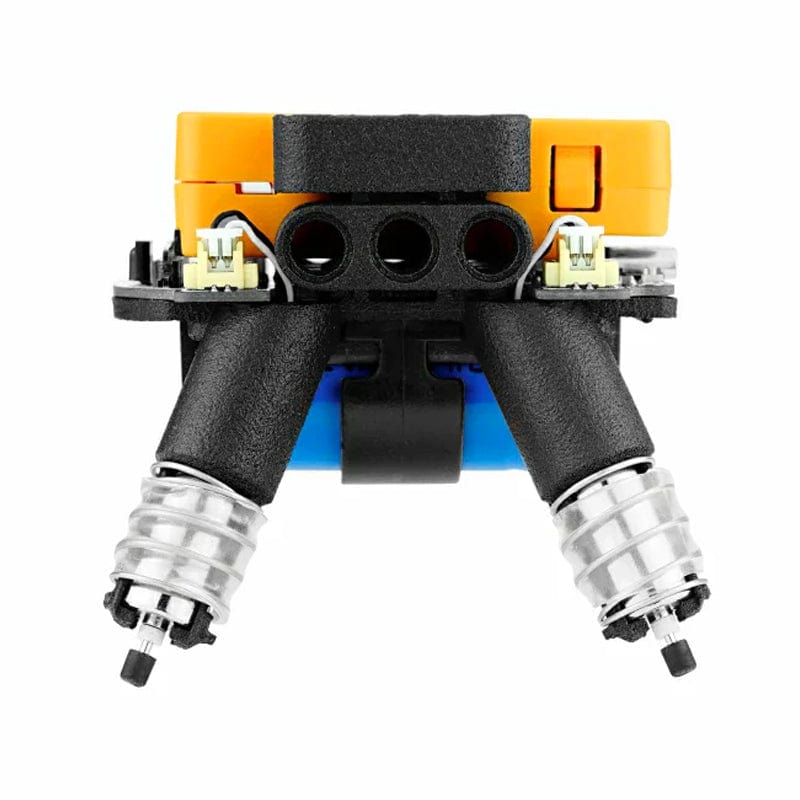

BugC2 with M5StickC PLUS 2

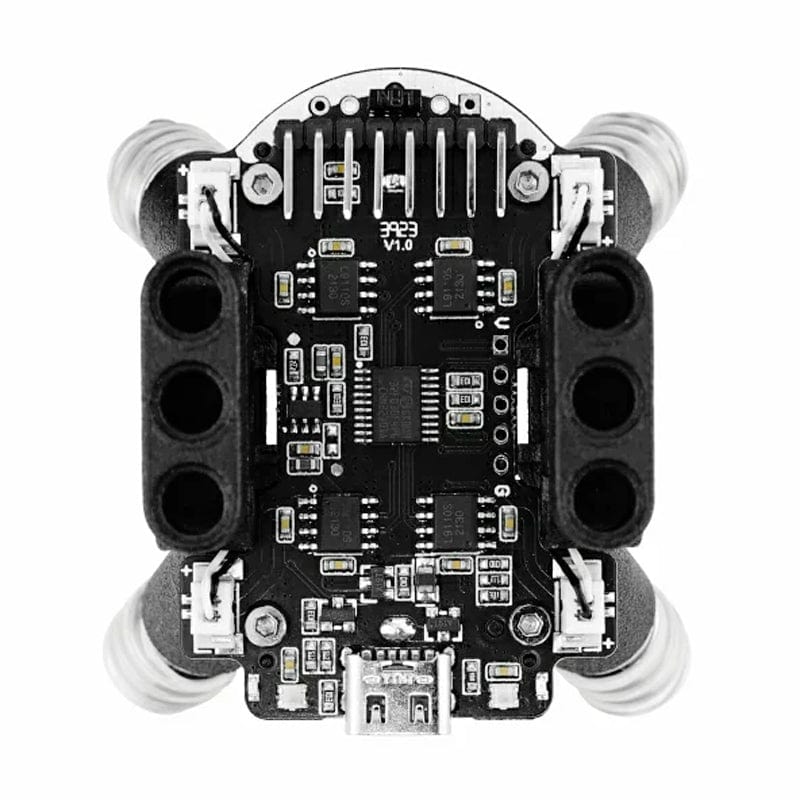

The BugC2 is a programmable robot base compatible with the M5StickC series controllers. This base has four L9110S motor drivers and DC gear motors, has the STM32F030F4 as its core control chip, and comes equipped with two flexible programmable RGB LEDs, an infrared encoder, and a dedicated battery holder. The BugC2 can closely connect with the M5StickC controller through its top slot, receiving control commands via the I2C protocol (address 0x38).

Beyond providing basic mobility capabilities, it also features a Type-C charging port, battery reverse connection protection, and voltage detection for safety and convenience. Its built-in 700mAh 16340 rechargeable lithium battery offers long-lasting battery life, making it a multifunctional and efficient programmable robot platform suitable for various educational and innovative projects.

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

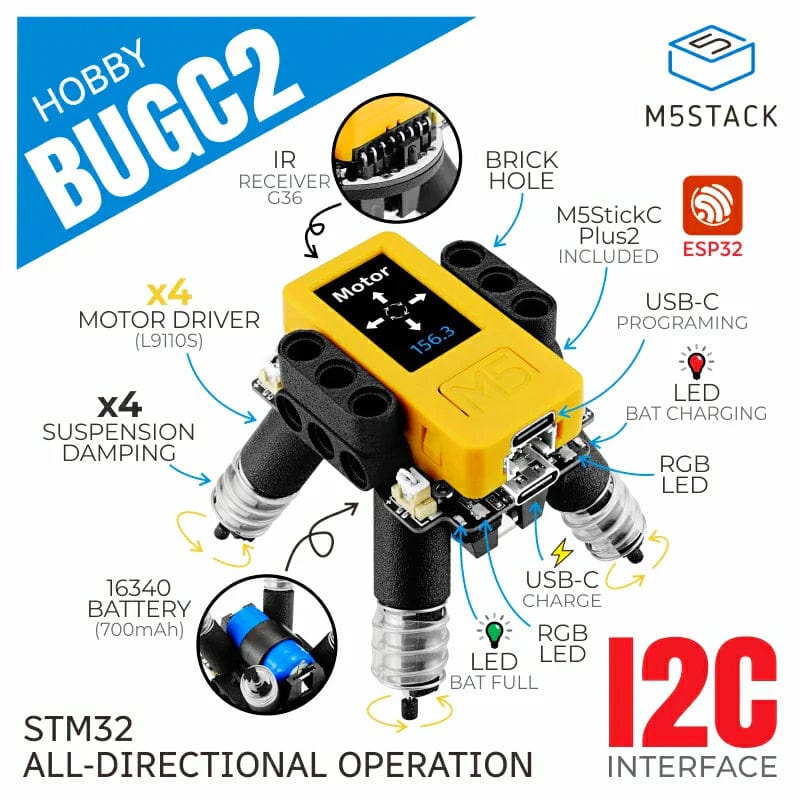

Features

• Programmable Robot
• Remote Control
• Four-way Motor Driver (L9110S)
• 2x RGB LED
• Infrared Remote Control Decoding
• Battery Voltage Detection
• Onboard Type-C Port Battery Charging
• Battery Anti-Reverse Connection

Specifications

Resources

• Product Wiki
• Easy Loader BuC2 Demo

Package Contents

• 1x StickC Plus2
• 1x BugC2 Base
• 12x Silica Gel Pads
