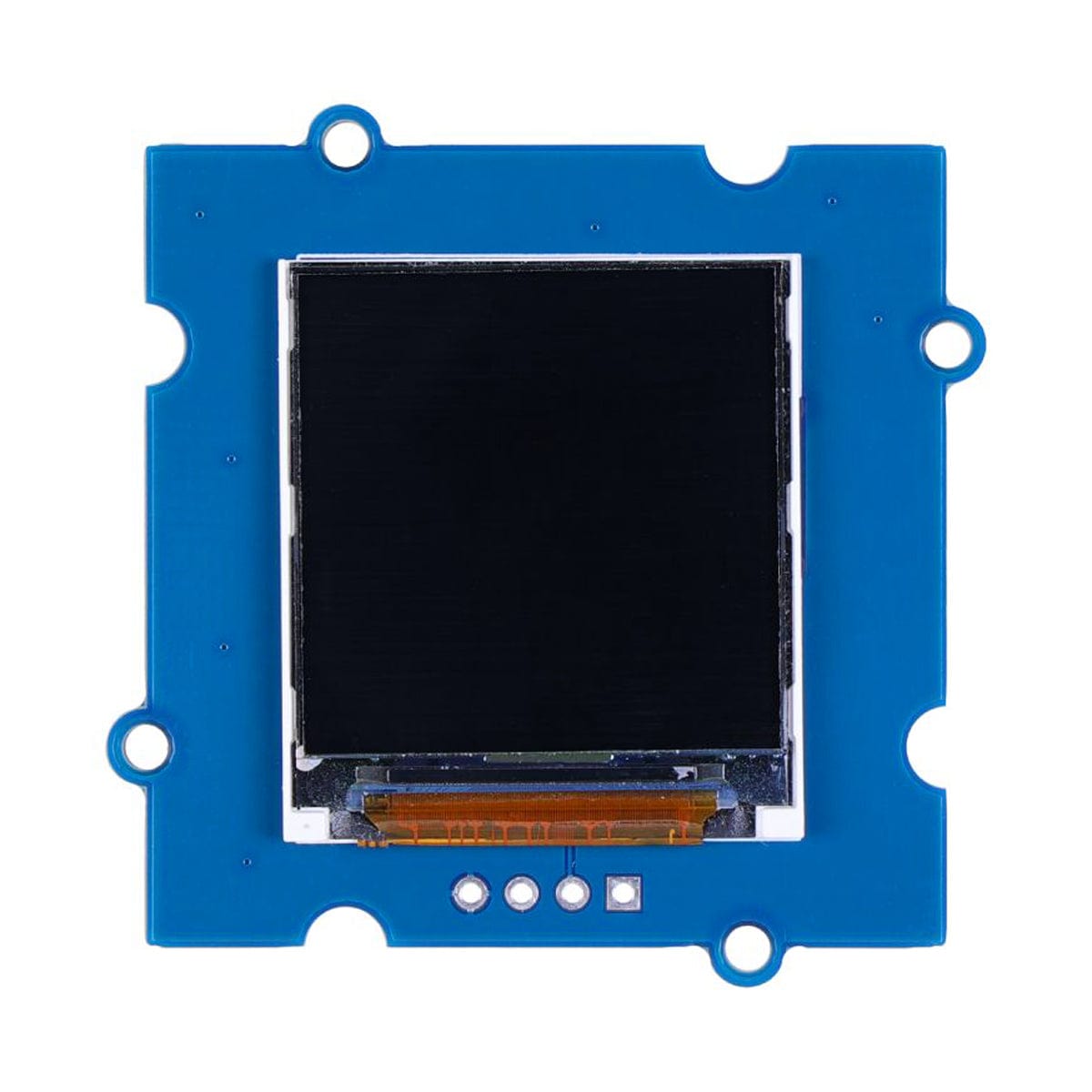

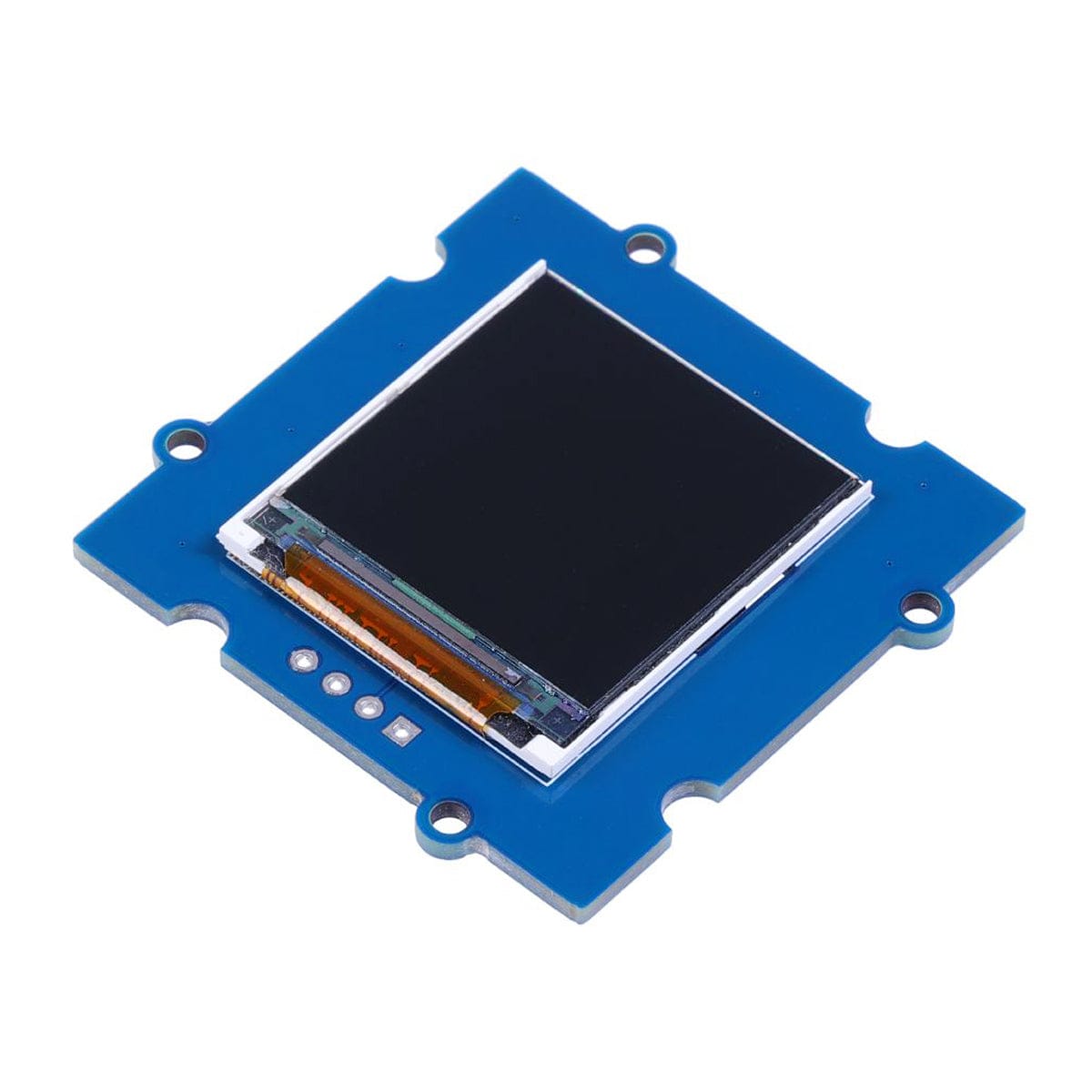

This 1.22" IPS display uses In-Plane-Switching (IPS) technology with a 240 x 240 pixel resolution and 65k RGB colours, giving wider viewing angles and making images more vibrant. It has input voltages of 3.3V or 5V and is powered by the ST7789 driver IC.
It is supported by an open-source driver library and example code, making it easy to use for projects like digital displays, gaming consoles, and smart home systems.
Features
- 1.22" IPS Display: Offer 240 x 240 resolution, and provide full-view angle
- Simplified IPS Interface: Only requires SCK and SDA for connection to the main controller
- Rich Color Display: Enhance vibrant images with RGB colour, be able to show up to 65k colours
- Wide Operating Temperature: Functioning well at the range of -20 to 70 degrees makes it suitable for various environments
- Compact and Flexible: It has a 4-pin Grove interface for easy microcontroller connection and supports both 3.3V and 5V power supply
- Product Number: Seeed 104020268
Specifications
| Interface | Serial SPI with SCK and SDA connections to the main controller |
| Resolution | 240 x 240 pixels |
| Display Technology | In-Plane-Switching (IPS) technology |
| Colour | Up to 65k colours with RGB display |

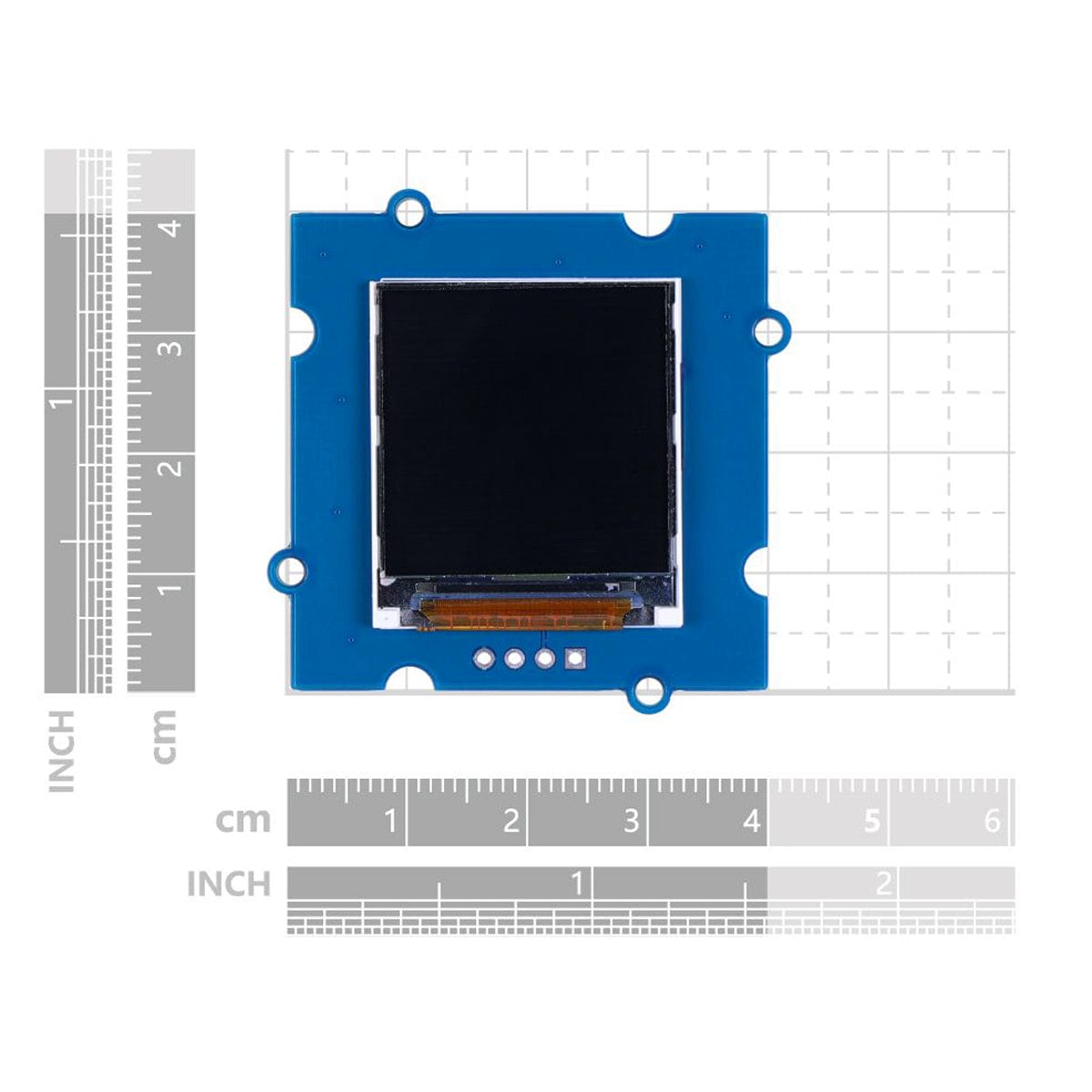

| Size | Screen: 24.76 x 26.8mm, circuit board: 40 x 40mm |
| Input Voltage Range | 3.3V or 5V |
| Driver IC | ST7789 with open-source driver library and example code |
| Operating Temperature | -20 to 70 degrees Celsius |
Resources

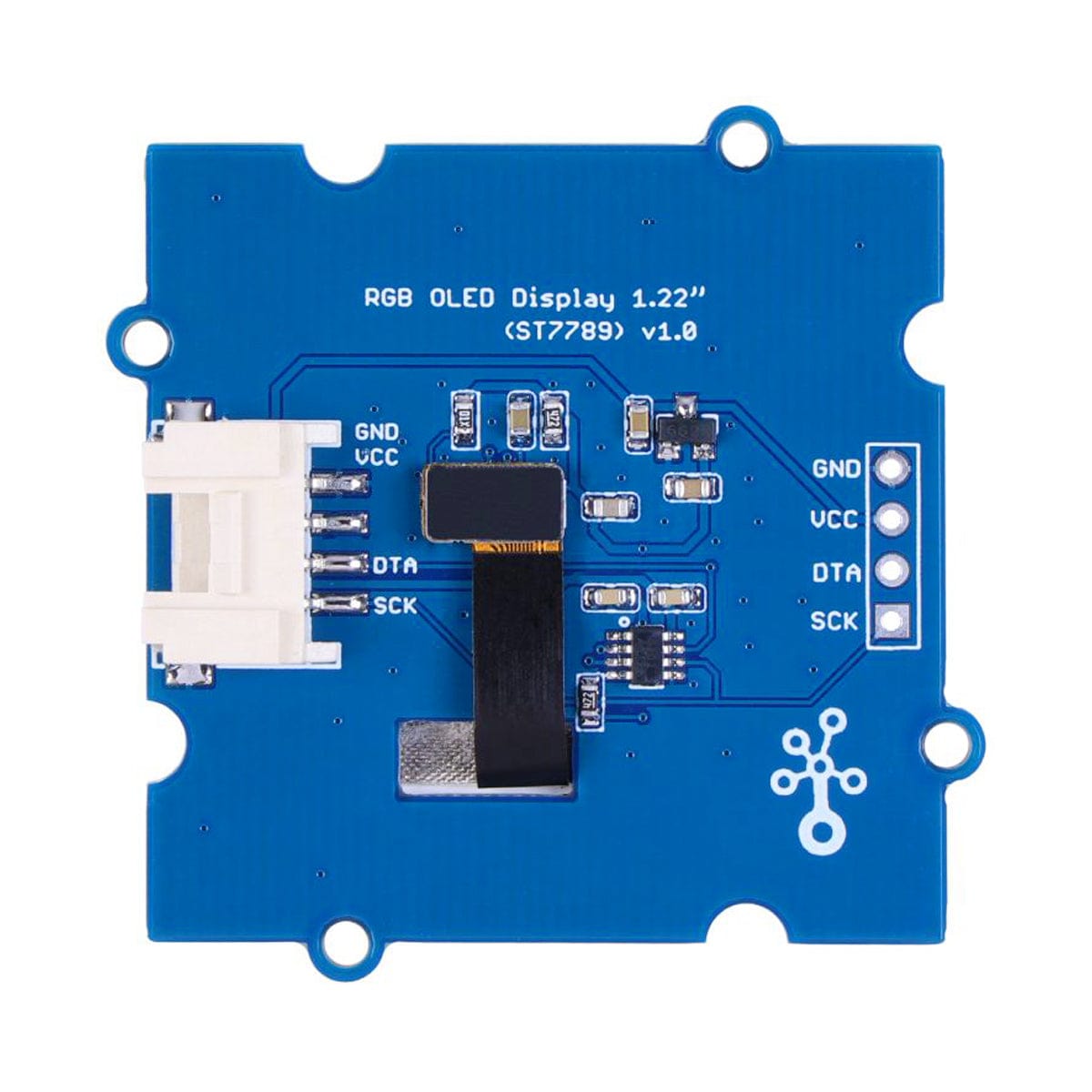

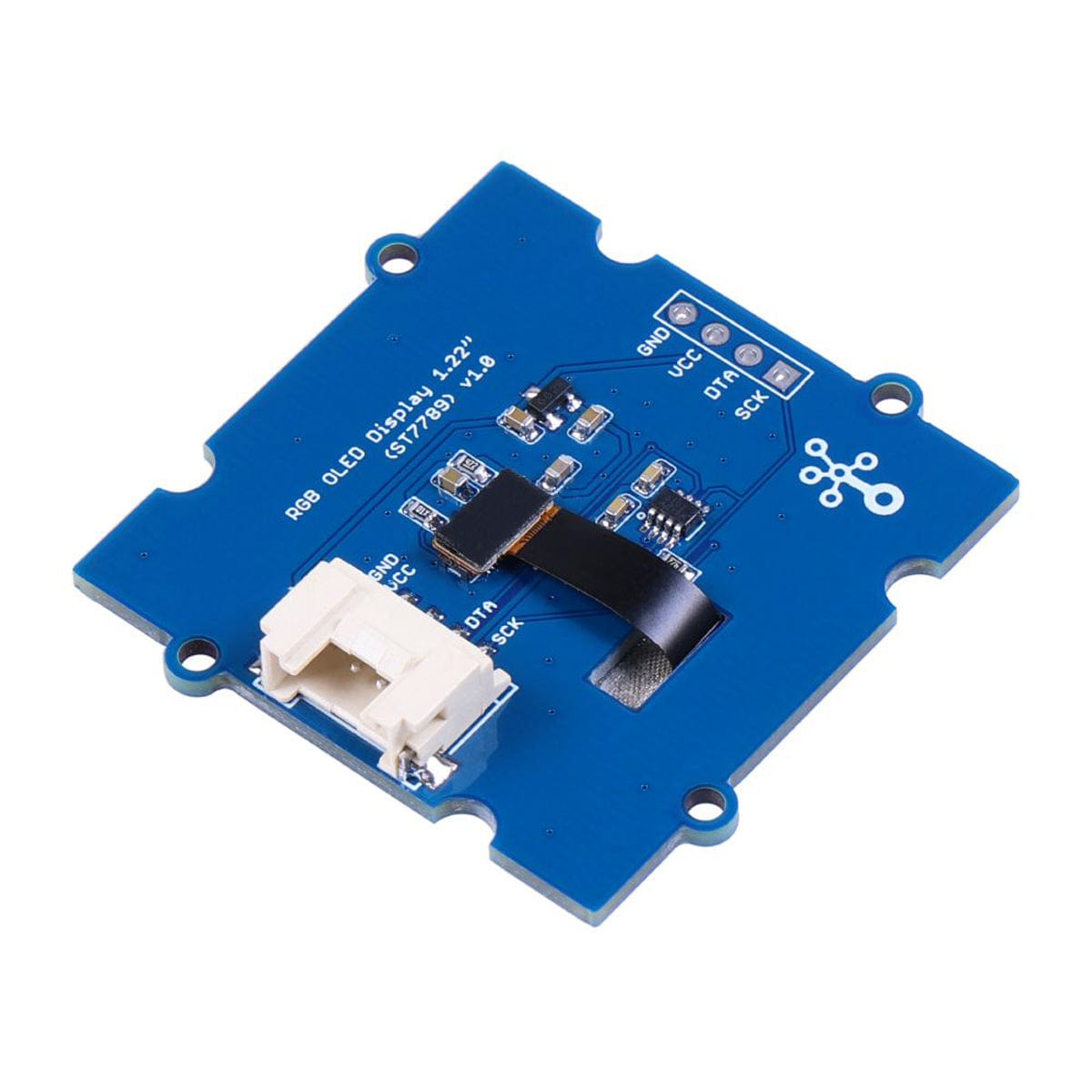

Pinout
Package Contents
- 1x Grove 1.22" IPS Display
- 1x Grove Connector
