M5Stack PoE Camera with Wi-Fi (OV3660)

Name: M5Stack PoE Camera with Wi-Fi (OV3660)
Brand: M5Stack
SKU: U121-B-V11
Price: 30.80 USD
Availability: InStock

$30.80 USD

Распродажа Продано

Количество

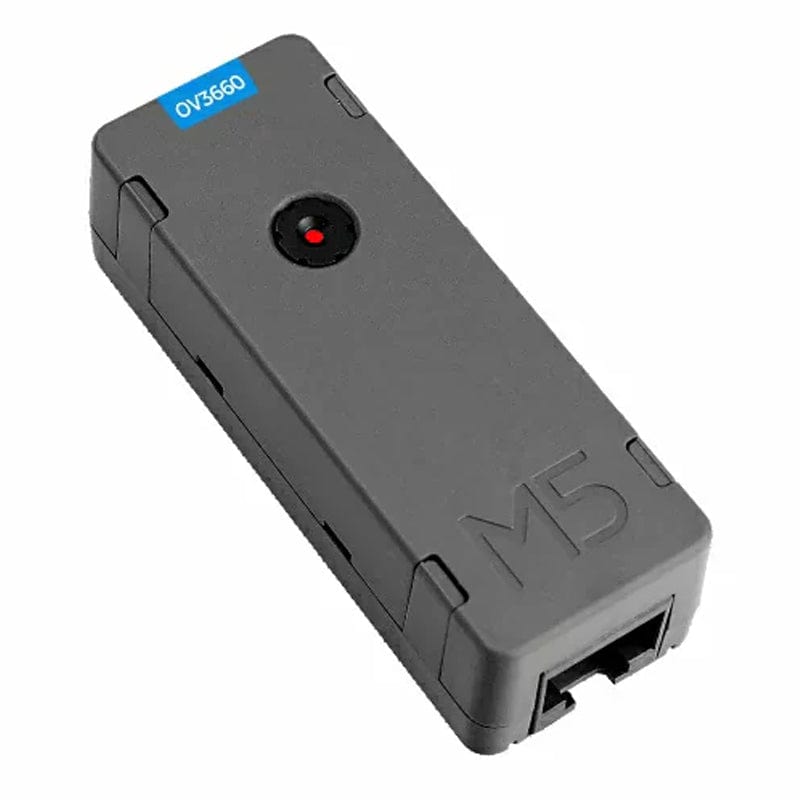

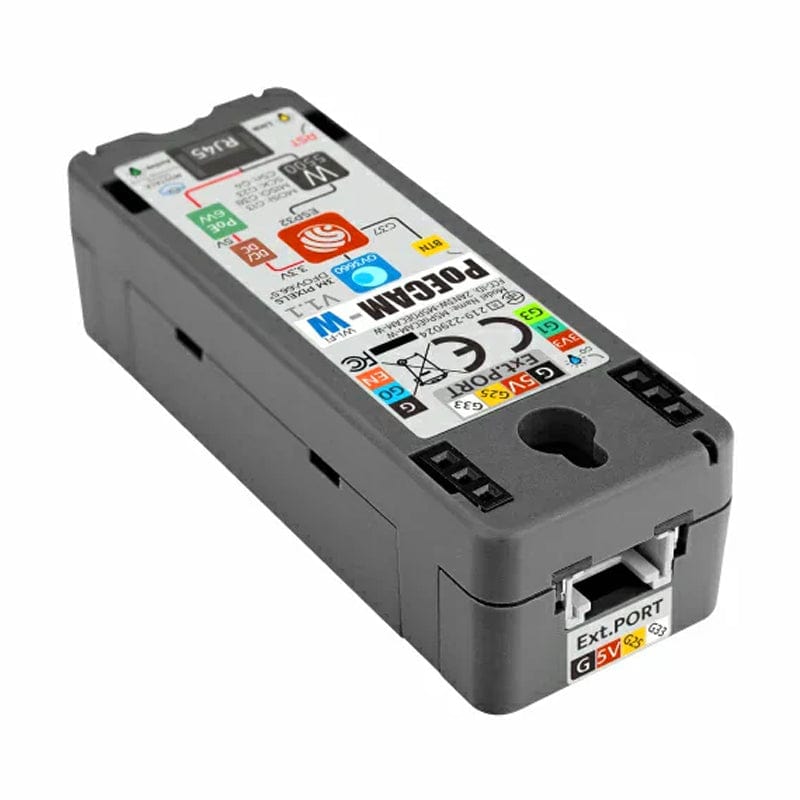

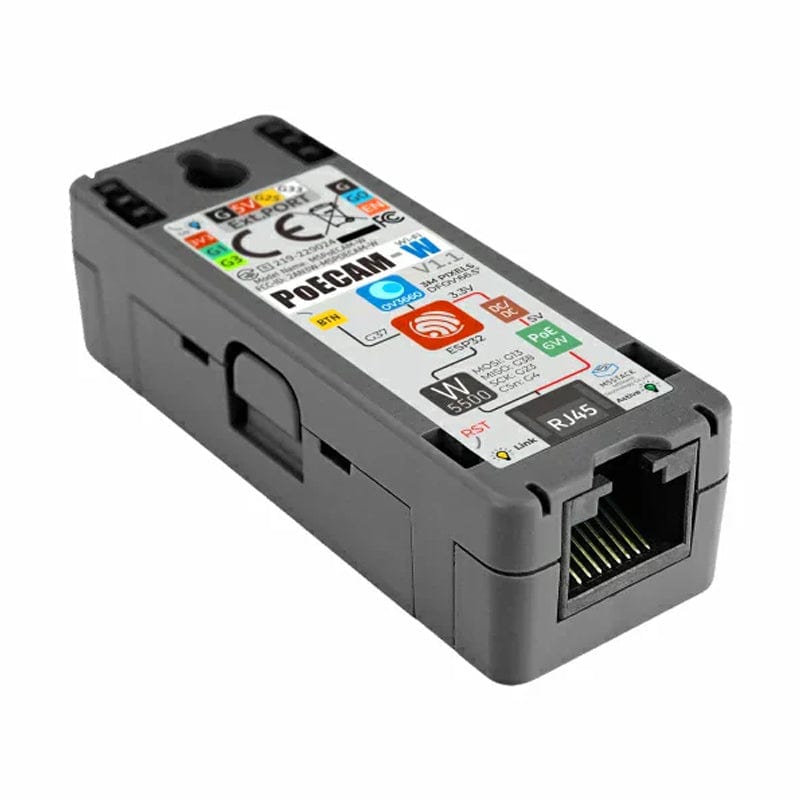

This programmable PoE camera, based on the ESP32 & W5500 module, includes a 3-megapixel OV3660 image sensor for sharp, vibrant images with a 65° field of view. It integrates PoE (power over Ethernet, max consumption 6W) and Wi-Fi capabilities. With 16MB Flash and 8MB PSRAM, programs can be downloaded via the Micro-USB interface.

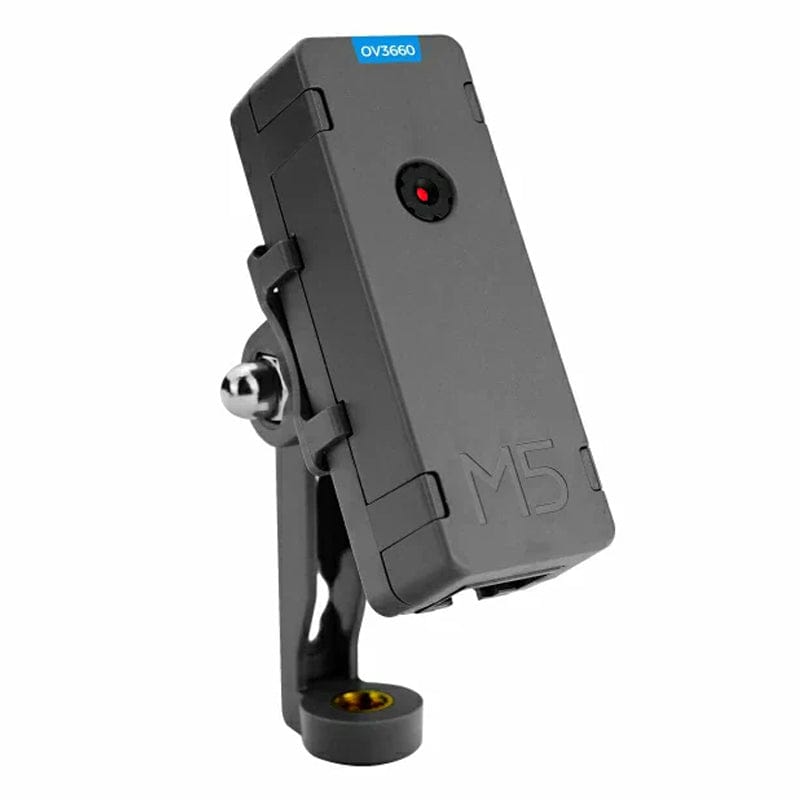

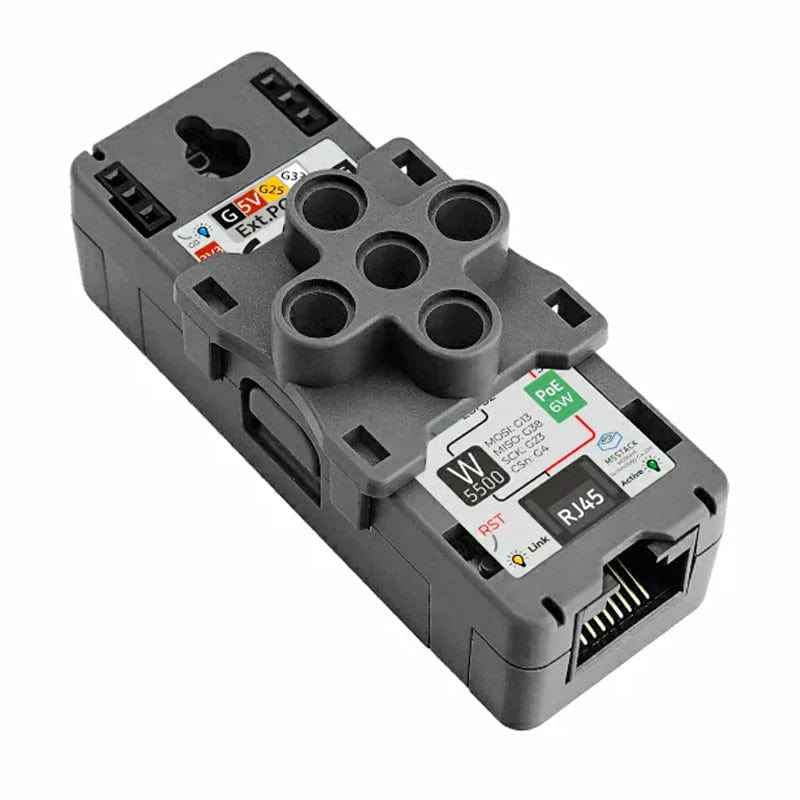

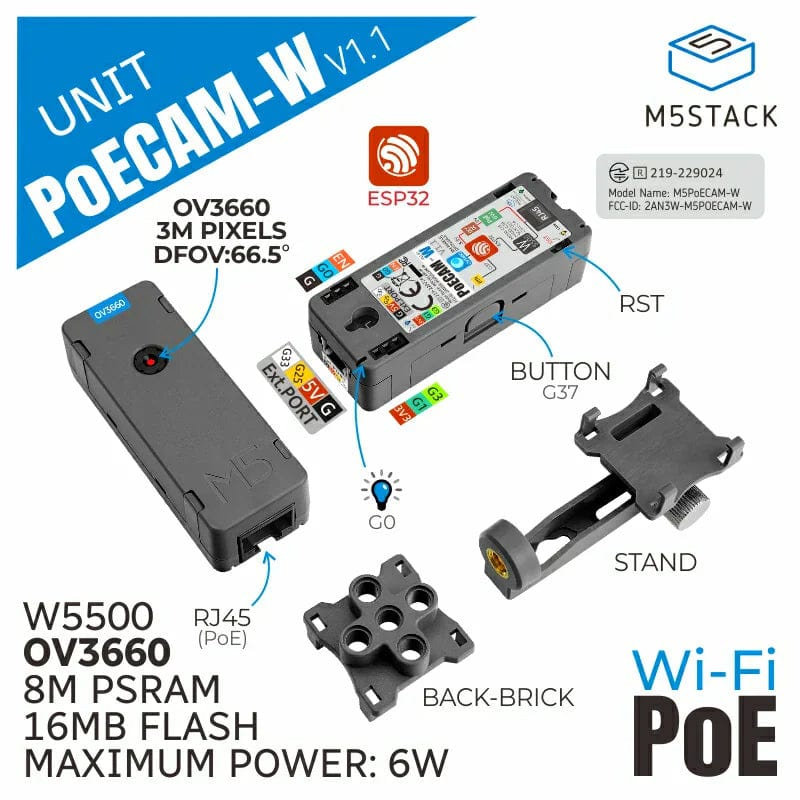

It includes a G37 button, LED indicator light (G0), Grove interface (EXT_PORT), and expansion pins, along with a camera mounting clip and LEGO-compatible clip. This camera is great for your next project that involves image monitoring, remote acquisition, smart home, and industrial automation scenarios needing PoE-powered devices.

Features

Built-in ESP32-D0WDQ6-V3 (Support 2.4G Wi-Fi）
3 million pixel camera OV3660
Ethernet chip W5500
LAN speeds up to 10M or 100M (depending on the line provided)
PoE IEEE802.3 AF specification (Maximum power 6W）
Built-in prompt LED light
Ethernet standard interface RJ45
Standard LEGO interface and camera mount
Development platform: Arduino, ESP-IDF

Specifications

SoC	ESP32-D0WDQ6-V3
Camera Module	OV3660 @3 Megapixel
DFOV	65.5°
Ethernet Chip	W5500
FLASH	16MB
PSRAM	8MB
Wi-Fi	802.11 b/g/n
Pixel Size	1.75µm x 1.75µm
Output Format	RAW
	RGB565/555/444
	YUV422/420
	YCbCr422
	JPEG
Automatic image control functions	Automatic Exposure Control (AEC)
	Automatic Gain Control (AGC)
	Automatic White Balance (AWB)
	Automatic Band Filter (ABF)
	Automatic Black-Level Calibration (ABLC)
FOV	65°
Supports Hardwired TCP/IP Protocols	TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
Ethernet interface specifications	RJ45
PoE	PoE IEEE802.3AF specification (Max power 6w)

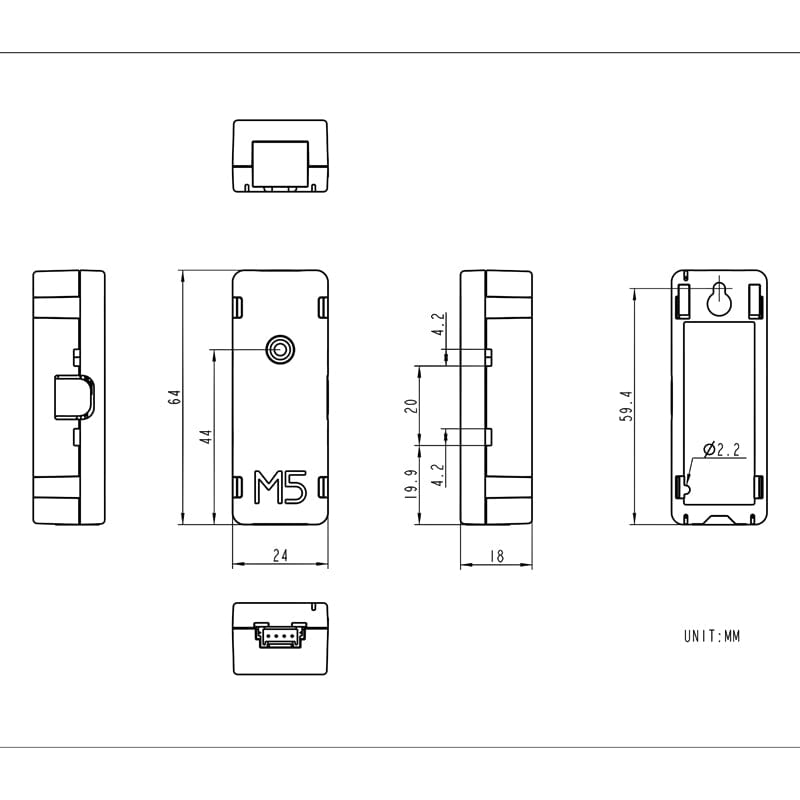

Product Size	64 x 24 x 18mm
Package Size	80 x 37 x 32mm
Product Weight	38g
Package Weight	45g
