M5Stack
Mini CAN Unit (TJA1051T/3)
Mini CAN Unit (TJA1051T/3)
Не удалось загрузить сведения о доступности самовывоза
The CAN Unit is a compact CAN bus communication module with the TJA1051T chip, which offers high-speed data transmission capabilities and supports the CAN FD (Flexible Data Rate) protocol. It is also equipped with electromagnetic compatibility (EMC) and electrostatic discharge (ESD) protection mechanisms, providing security and stability for data transmission.
It has a DC-DC power supply chip, accommodating a wide voltage input range of 5-24V, providing you with a stable and efficient CAN communication solution. Whether you are involved in automotive electronics, industrial automation, or communication systems, the Mini CAN Unit offers a reliable and flexible CAN communication solution.
Features
- Using TJA1051T/3 chip
- High-Speed Data Transfer Capability (CAN FD)
- Electromagnetic compatibility (EMC) and electrostatic discharge (ESD) protection mechanisms
- Wide voltage input range (5-24v)
Specifications
| Resources | Parameters |
| Transmission Speed | Up to 5Mbit/s (CAN FD) |
| Protocol Standard | Compliance with ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 standards |
| Wide voltage input | 5-24V |

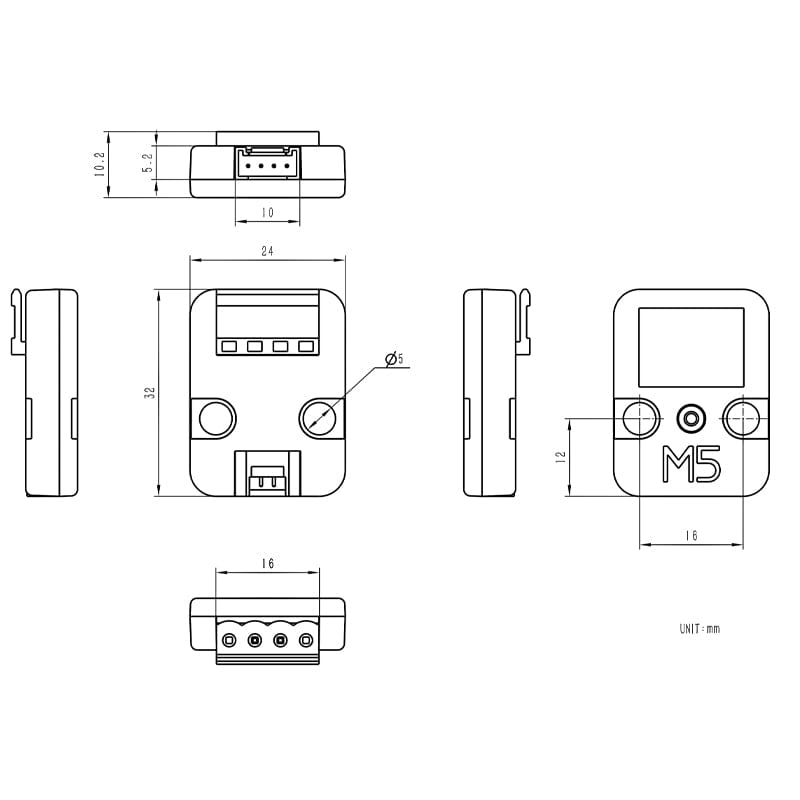

| Product Size | 32 x 24 x 10.2mm |
| Package Size | 136 x 92 x 3.7mm |
| Product Weight | 7.8g |
| Package Weight | 13.1g |
Resources

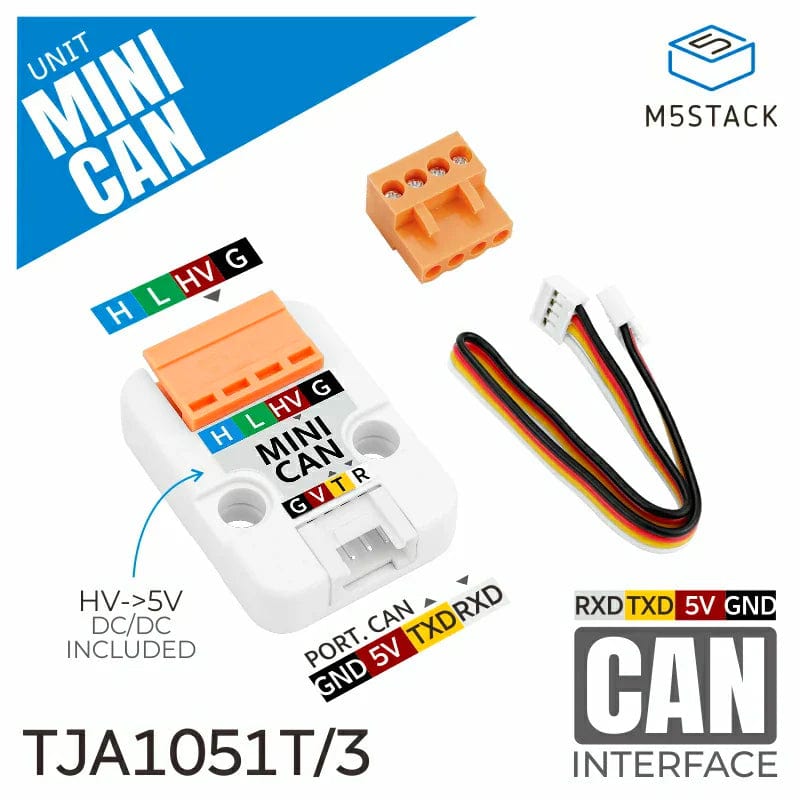

Package Contents
- 1x Mini CAN Unit
1x Grove Cable (20cm)
