Olimex RT1010-Py

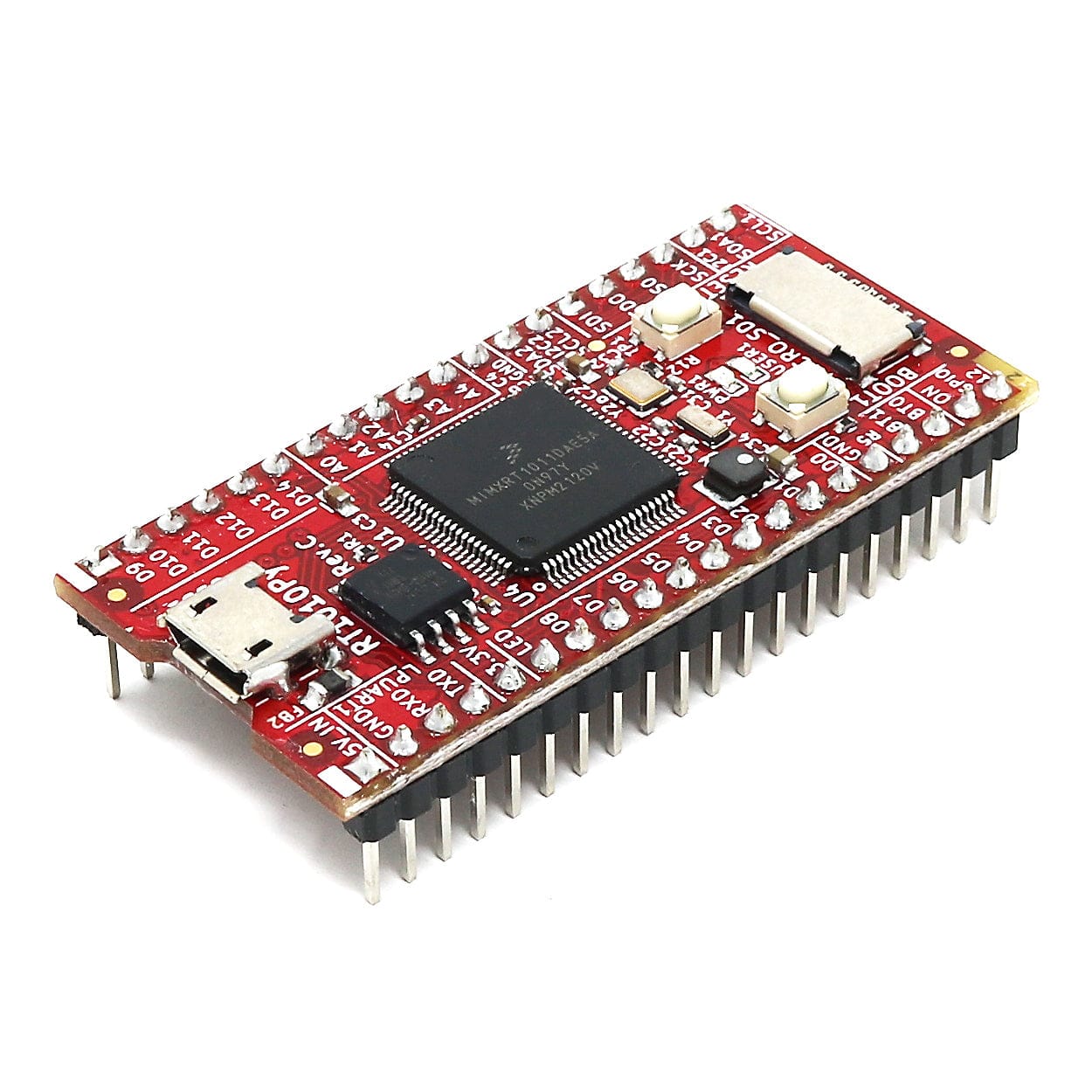

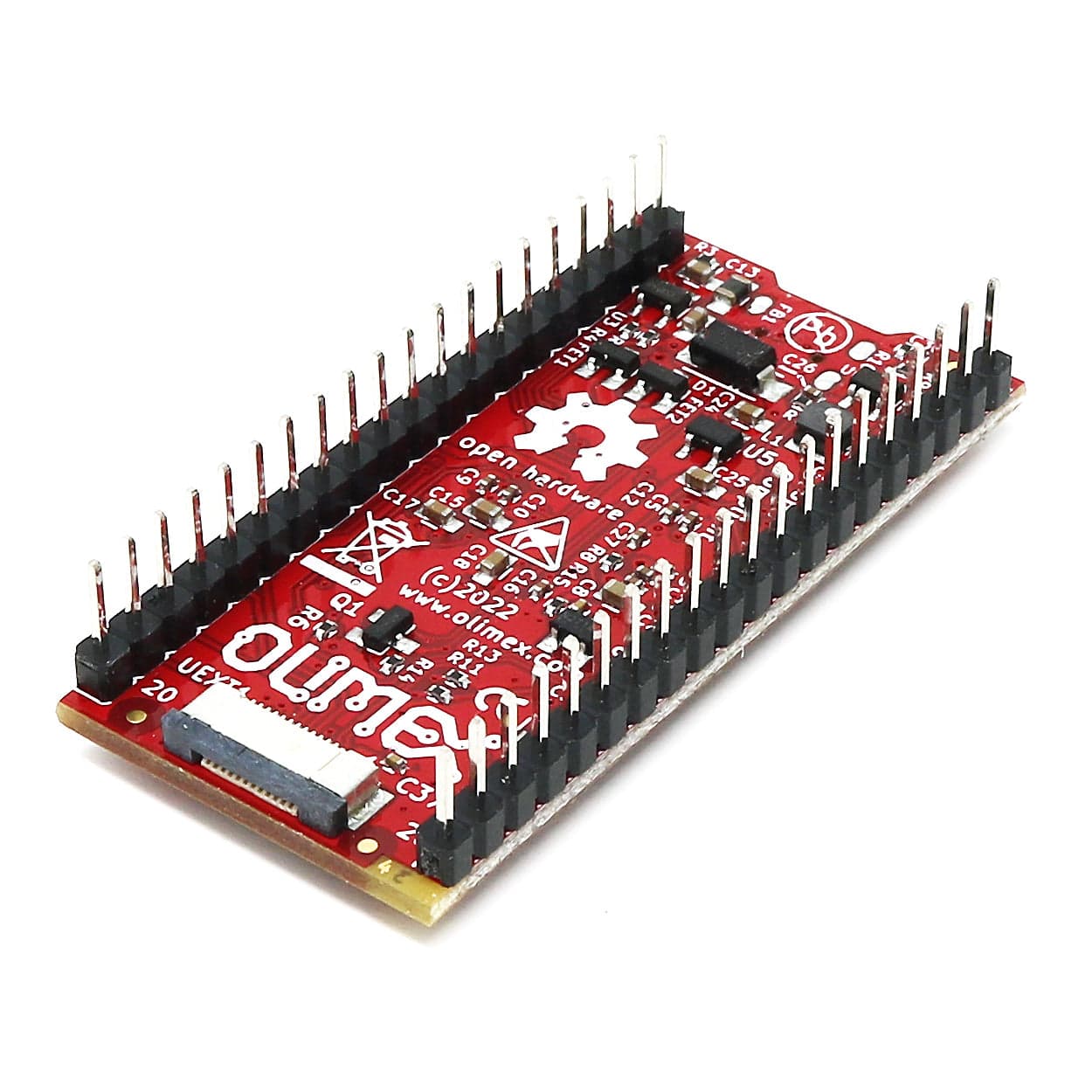

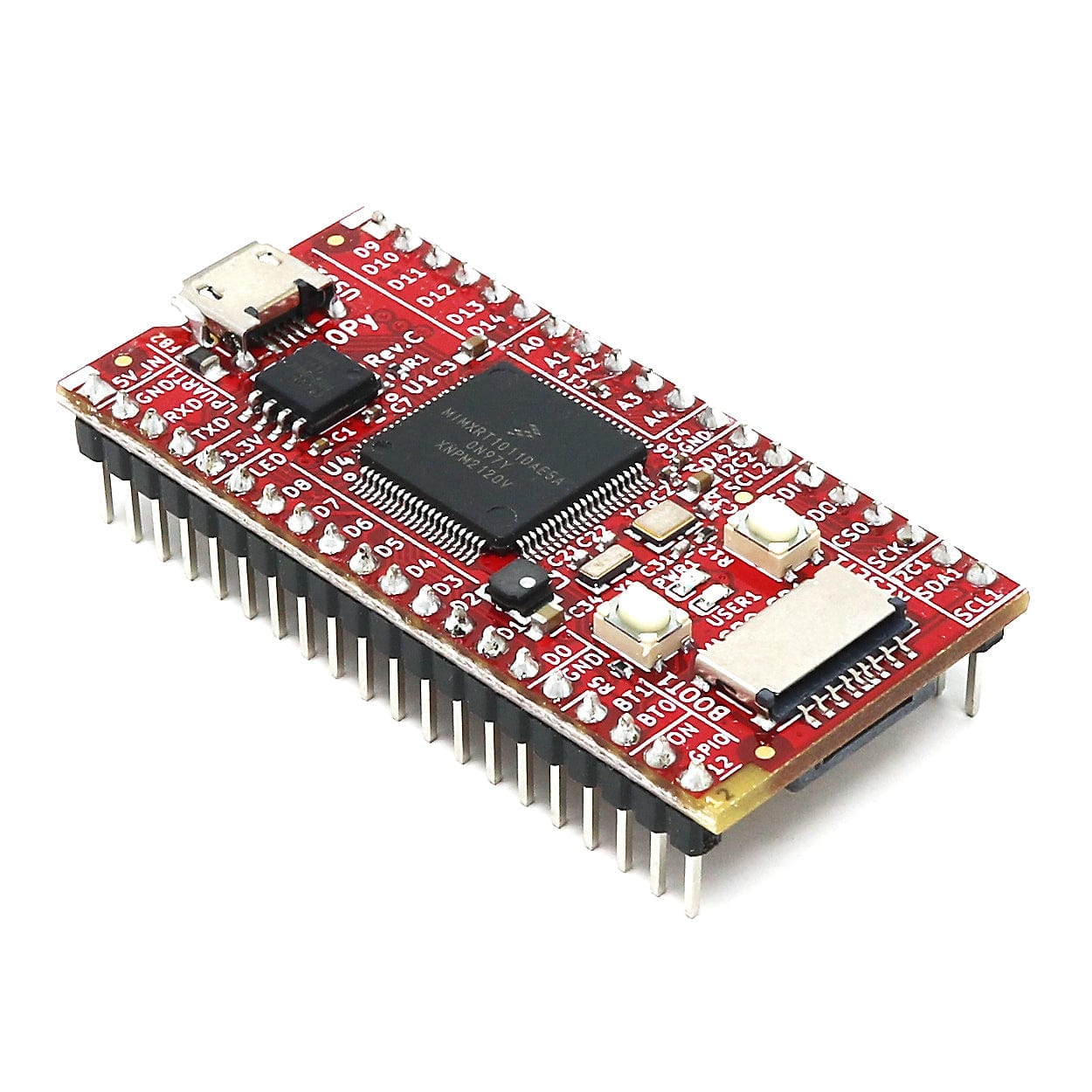

This is the Olimex RT1010-Py - a development board with an NXP MIMXRT1011DAE5A Cortex-M7 processor running at 500Mhz - four times faster than the RP2040!

If you use an RP2040 but need more speed, this board might be the perfect solution for you!

The board offers 128KB on board RAM, 2MB SPI Flash and a microSD port. You'll also find a RESET and BOOT buttons. A micro-USB connection handles power and programming (be sure to grab a micro-USB cable as one isn't included).

The RT1010-Py runs MicroPython thanks to Robert Hammelrath.

Features

• MIMXRT1011DAE5A running at 500Mhz
• 128KB on board RAM
• 2MB SPI Flash
• Three UARTs
• Two SPIs
• Two I2Cs
• I2S
• Four PWM units with complementary outputs for push pull drivers
• USB 2.0 OTG
• Micro SD card connector
• RTC with 32.768 kHz crystal
• RESET button
• BOOT button
• UEXT connector with 3.3V, GND, I2C, SPI, and UART
• Two GPIOs headers spaced at 22.86 mm (0.9”)
• Dimensions: 53.34 x 25.4 mm ( 2.1 x 1”)

Resources

Package Contents

• 1x Olimex RT1010-Py board
