Unit Cam Wi-Fi Camera with Enclosure (OV2640)
Unit Cam Wi-Fi Camera with Enclosure (OV2640)
Не удалось загрузить сведения о доступности самовывоза
This unit camera is a Wi-Fi camera with the ESP32-WROOM-32E control core and a 2-megapixel image sensor (OV2640). Its minimalist design includes only essential components. The pre-installed software comes with image transmission firmware, providing interfaces for image data acquisition and adjustment of image parameters such as white balance, exposure, gain, and size.
You can directly access image data and interact with the camera via UART or WiFi. It supports UIFlow graphical programming, providing a development-free experience. Additionally, the reserved program download interface lets you easily update or customise the firmware, improving functionality and performance. The camera also comes with a mounting clip for easy installation and its compact design makes it suitable for various wireless camera projects.
Click here to find a kit that makes program burning much simpler.

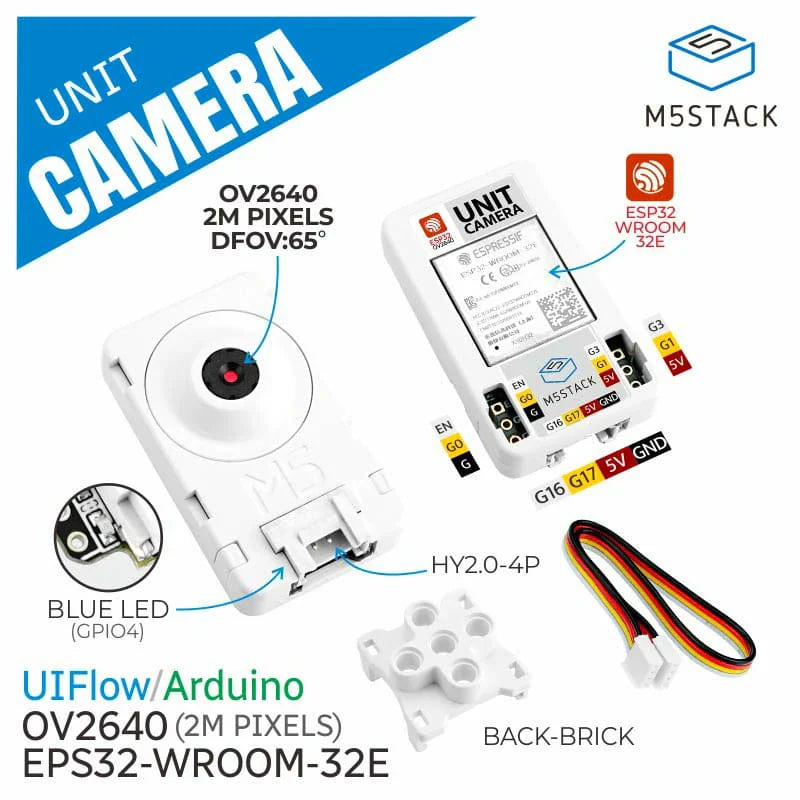

Features
- ESP32 control core
- Simplified design
- 2 MegaPixel camera (OV2640)
- UART communication (supports image data acquisition and image parameter adjustments)
- WiFi image transmission
- Programmable LED indicator (blue)
- Programming platforms: ESP-IDF / Arduino / UIFlow
Specifications
| Resources | Parameters |
| ESP32-WROOM-32E | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi |
| Flash | 4MB |
| Camera | Focal length 4.8±5% mm |
| Aperture 2.4±5% | |
| Lens type 1/4 inch | |
| Field of view 65° | |
| Pixels 2M | |
| Sensitivity <1% | |
| Image sensor OV2640 | |
| Support output format | YUV (422/420)/YCbCr422, 8-bit compressed data, RGB565/555, 8-/10-bit Raw RGB data |
| DFOV | 65° |

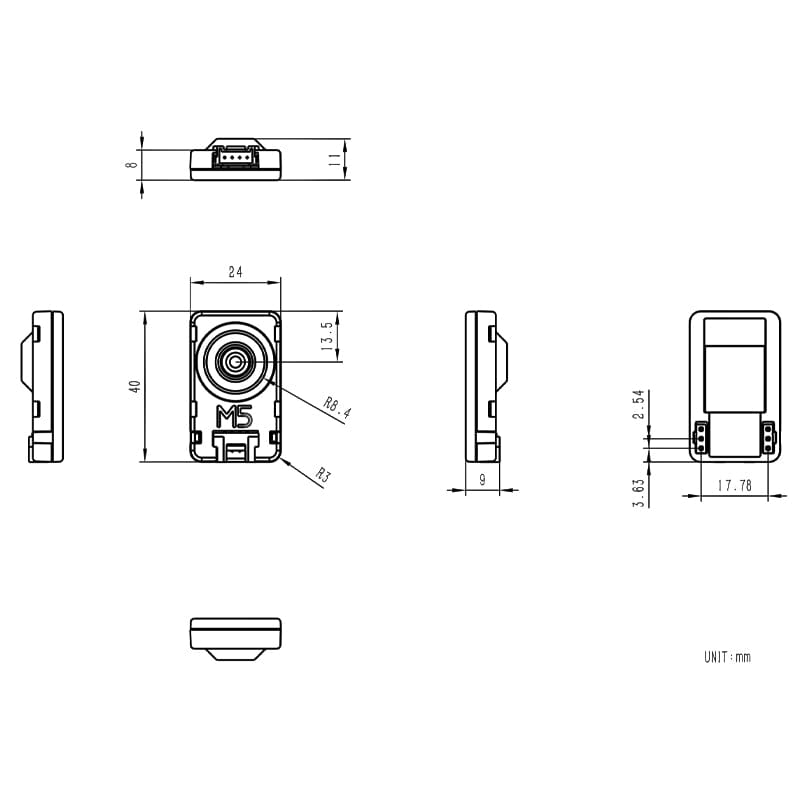

| Product Size | 40 x 24 x 11m |
| Package Size | 136 x 92 x 13mm |
| Product Weight | 10.6g |
| Package Weight | 15.7g |
Resources
Package Contents
- 1x Unit Camera
- 1x Grove Cable
- 1x Camera back clip (compatible with LEGO)
