2.4GHz Rod Antenna for XIAO ESP32C3

Name: 2.4GHz Rod Antenna for XIAO ESP32C3
Brand: Seeed
SKU: 106067
Price: 2.10 USD
Availability: OutOfStock

$2.10 USD

促销售罄

数量

This 2.4GHz antenna has a gain of 2.81dBi which provides a strong and stable signal reception and transmission, making it great for a wide range of projects, including IoT devices, home automation, and wireless sensor networks.

It is compact and lightweight, with a design that easily integrates with your XIAO ESP32C3 setup. Its flexible connector allows for easy installation and positioning, making sure you get the best possible signal in any environment. Whether you're looking to improve your device's range or enhance its connectivity, this 2.4GHz antenna is an excellent addition to your next project.

Features

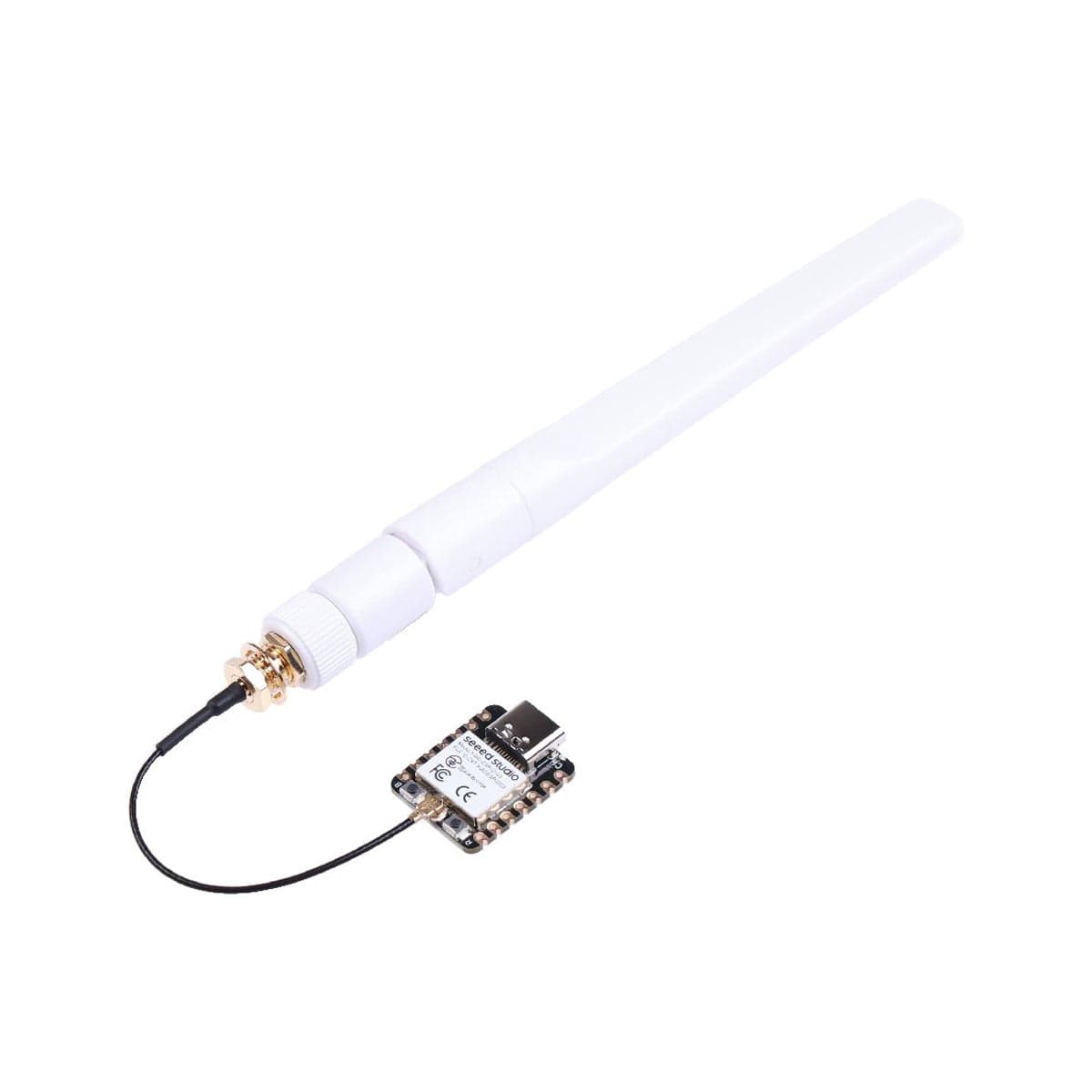

Mini Antenna for Tiny Seeed Studio XIAO ESP32C3: Attach everything you need to enhance the tiny MCU board wireless capability in 2.4GHz
Omnidirectional Function Design: Effective hardware, which gains up to 2.81dBi
Material Substance Compliance: REACH, RoHS
Product number: Seeed 103990623

Specifications

Frequency Bands, MHz	2400-2500
VSWR (Max)	3.0:1
Peak Gain, dBi (Typ)	Up to 2.81
Nominal Impedance	50 Ω
Max Power (ambient temp of 25°C)	10 Watts
Azimuth Beam Width (deg)	Omnidirectional
Polarisation	Linear, Omnidirectional
Radome PC	White
Storage Temperature Range (°C)	-40° C to +85° C
Operational Temperature Range (°C)	-30° C to +80° C
Material Substance Compliance	REACH/RoHS Compliant
