M5Stack Din Base with 500mAh Battery

The Din Base is a 5x5cm series base specially designed for Din Rail rail fixing.

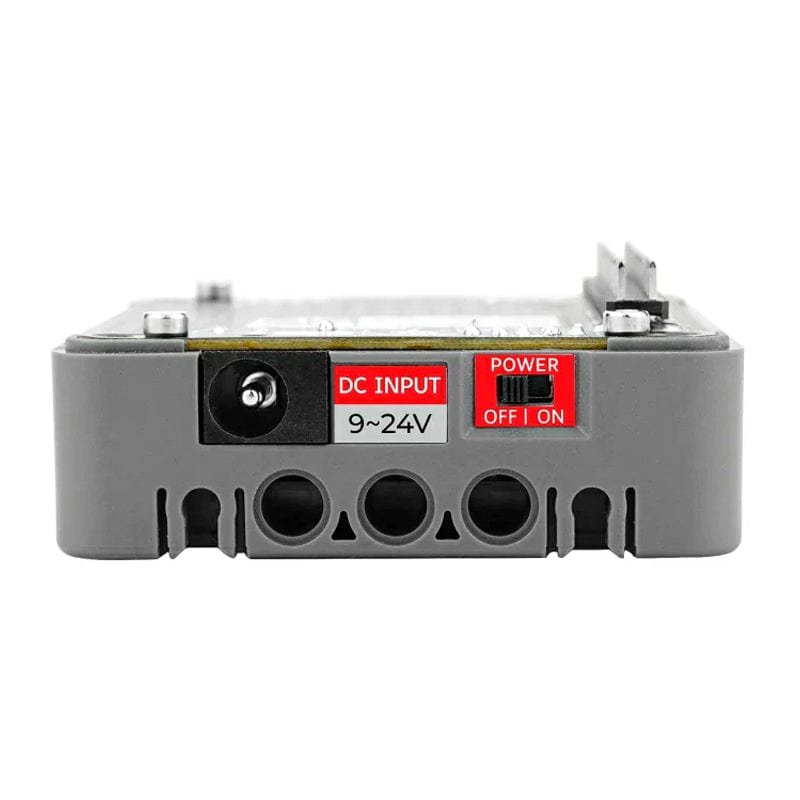

It is suitable for the M5Core, and the built-in 500mAh lithium battery can be externally input with a DC power supply (support 9~24V). There is an onboard power switch to completely shut down the external power and battery.

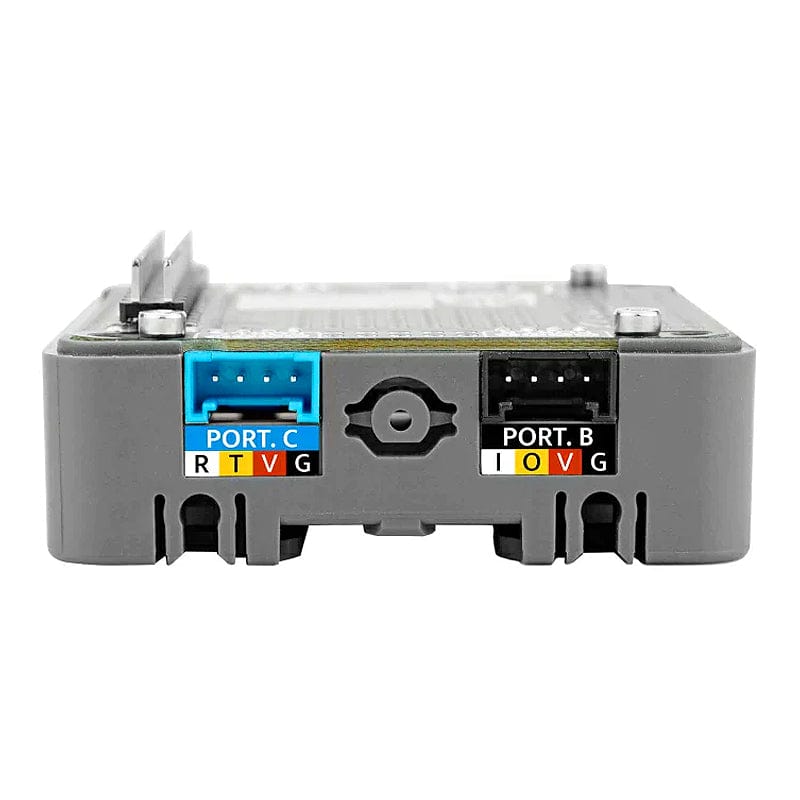

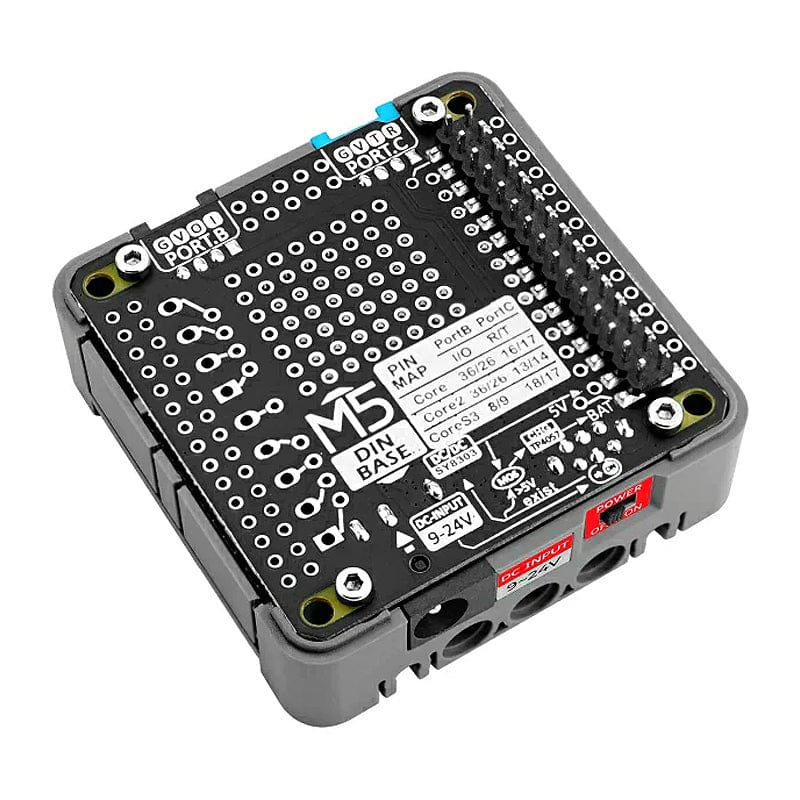

Reserved Port B and Port C interfaces. Lego mounting holes on the lower side for easy fixing, and the bottom supports standard 35mm Dinrails. In addition, four plug-in ears are provided to support a variety of fixing methods. The DinBase has a number of proto pads reserved on the internal PCB for easy DIY.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

---

Features

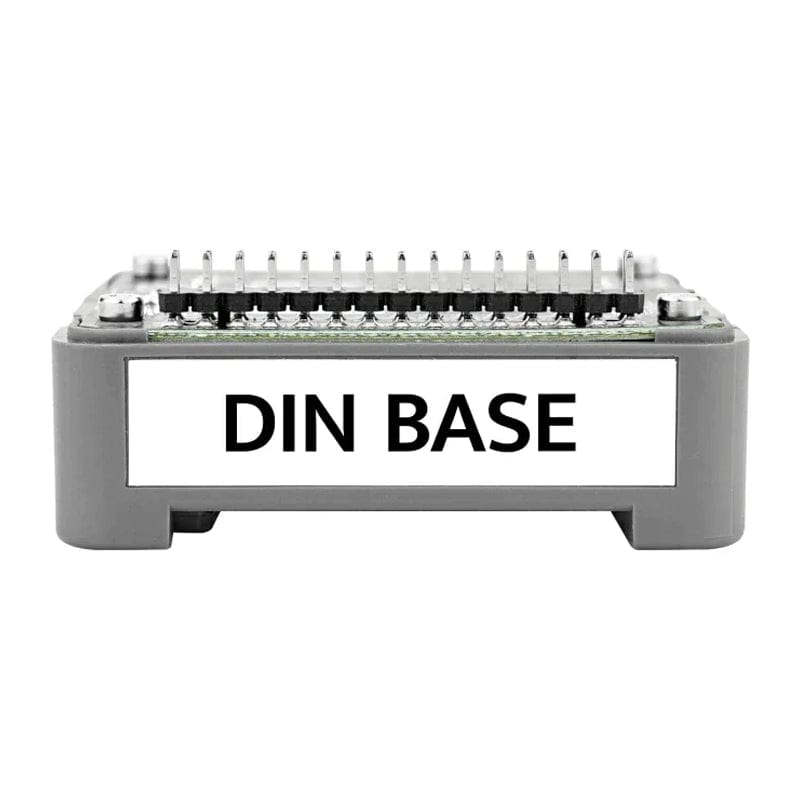

• 1X12P 2.54 interface
• Port B, Port C interface
• Power supply mode:
  • DC power supply (9-24V),
  • 500mAh lithium battery
• Power switch
• Multiple mounting options:
  • DinRail
  • Hanging ears

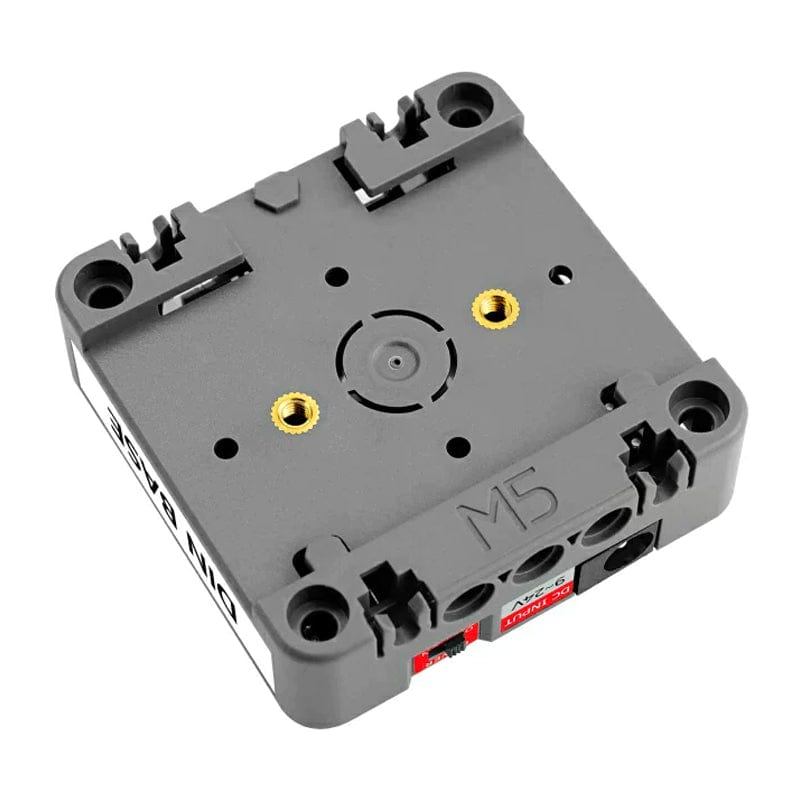

  • Two copper nuts embedded in the bottom
  • Three LEGO fixing holes on the sides

Specifications

Resources	Parameters
DCDC buck chip	SY8303AIC
Lithium battery charging chip	TP4057
DC External power supply	DC9-24V
Product Size	54x54x19mm
Package Size	95x65x21mm
Product Weight	45g
Package Weight	64.2g

Resources

• Product Wiki

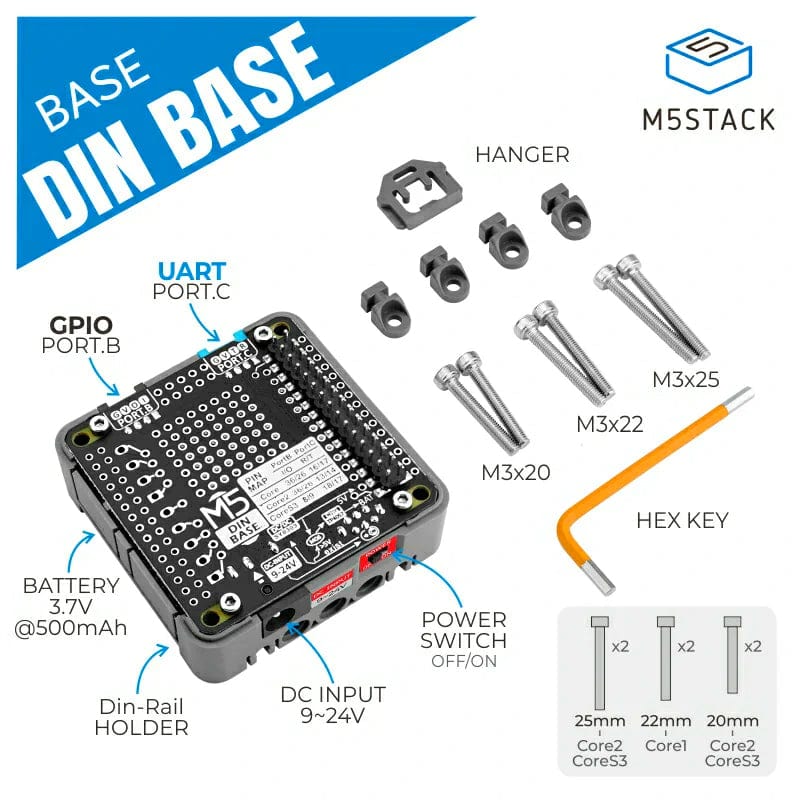

Package Contents

• 1x DinBase
• 4x Hanger
• 1x Snap
• 1x Hex key
• 2x Nut (2x25mm for Core2/CoreS3)
• 2x Nut (2x22mm for Core1)
• 2x Nut (2x20mm for Core2/CoreS3)
